2270 CENTER CONSOLE
SPECIFICATIONS





Specifications
  L.O.A. 21'8" 6.65M
  Beam 8'0" 2.44M
  Hull Draft (w/motor up) 1'2" .36M
  Hull Draft (w/motor down) 2'5" .72M
  Fuel Capacity 100 U.S. gal. 379L
  Approximate Dry Weight 3,000 lbs.
  Maximum Horsepower 225 168Kw
  Deadrise 20°
  Clearance w/ t-top 8'2" 2.49M
  Clearance w/o t-top 6'10" 2.08M

Performance Reports
  Yamaha 200 HPDI
  Yamaha 225 HP Four-Stroke Single


Standard Equipment

  Hull, Deck and Cockpit:
    5-year hull/deck structural and blister-free
transferable warranty
Pursuit "Edge" hull design
Pursuit diamond pattern non-skid

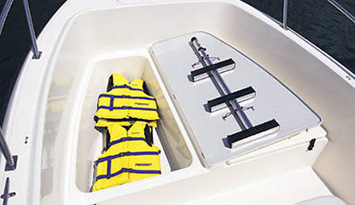

Forward rode/anchor locker
Self-draining cockpit
One-piece welded 316L S.S. bow rail
316L stainless steel 8" cleats (6) includes 4 mooring & 2 spring Drink holders
1/2" 316L stainless steel bow eye
1/2" 316L stainless steel stern eyes (2)
Molded-in integrated "Pursuit Plus" transom


  Instrumentation, Equipment:
    Hydraulic steering
15" destroyer wheel
Master circuit breaker box
Dual battery switch w/battery boxes
12V electrical panel w/breakers
U.S.C.G. & International lighting
Automatic bilge pump
Foam flotation
Fire extinguisher
Horn
Compass
Bow rail
Molded-in electronics storage
Pursuit meets or exceeds all U.S.C.G. & N.M.M.A. standards


  Fishing:
    Four (4) S.S. rod holders

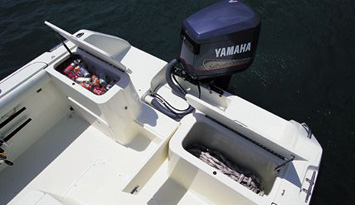

Two large insulated fish/storage boxes forward
Leaning post w/circulating live well & storage

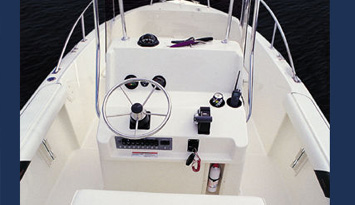

  Command Console:
    Tilt-away, handlaid fiberglass wrap-around console
Forward console seat w/cushion
1/4" tinted acrylic windshield
Console courtesy lights


Optional Equipment

Effective Date: August 01, 2003


  Base Boat w/Engine (Engine Installation Included):
    Yamaha® 200 hp Four-stroke (single)
Yamaha® 225 hp Four-stroke (single)
Single Yamaha® Two-stroke Pre-rig
Single Yamaha® Four-stroke Pre-rig
(For pre-rigging pricing only, please see your dealer)


  Mechanical:
    Trim tabs
Yamaha Fuel Management System
Lifting ring
Pursuit Fighting Lady Yellow hull
Pursuit Oceana Blue hull


  Fishing:
    Tackle locker
Raw water washdown w/hose


  Comfort and Convenience:
    Cockpit coaming bolsters
Forward fishbox cushion
Boarding ladder
Aft seats (two)
Leaning post with backrest




Weather:

T-top w/spreader light and rod holders (black skin)
Bimini top (black)
Sprayhood (black)
Console cover (black)
Engine cover (black)

Color Canvas (navy blue, forest green or khaki) N/C
Boat stripe (navy blue or forest green)

Shipping cradle


  Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Pursuit dealer.
