L.O.A. w/ Pulpit 28'5" 8.66M
  L.O.A. w/o Pulpit 26'5" 8.05M
  Beam 9'3" 2.82M
  Hull Draft (motors up) 1'8" .51M
  Hull Draft (motors down) 3'0" .92M
  Fuel Capacity 188 U.S. gal. 713L
  Approximate Dry Weight
  (with twin 225 four strokes) 6,990 lbs.
  (with twin 150 four strokes) 6,835 lbs.
  Maximum Horsepower 400 298Kw
  Holding Tank Capacity 15 U.S. gal. 57L
  Water Capacity 18 U.S. gal. 68L
  Deadrise 21°
  Clearance w/ t-top 8'6" 2.67M
  Clearance w/o t-top 6'9" 2.13M

Performance Reports
  Twin 225 HP Yamaha Four-Stroke

Standard Equipment

  Hull, Deck and Cockpit:
    5-year hull/deck structural & blister-free transferable warranty
One 1/2" S.S. bow eye
Self-draining cockpit
Custom one-piece welded S.S. low profile bow rail
Four 8" S.S. mooring cleats
Two 8" S.S. spring cleats
Leaning post with rocket launchers
Cockpit courtesy lighting
Integrated bow pulpit
S.S. (316L) one-piece bow roller with poly trim
Drink holders
Transom door
Cockpit coaming bolsters
Aluminum grab rails
Armstrong® boarding ladder

    Forward deck hatch
Head in forward V-berth

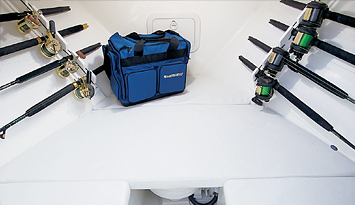

Cabin rod storage for 14 rods
Overhead cabin lighting
Electric head with macerator
with nine gallon holding tank

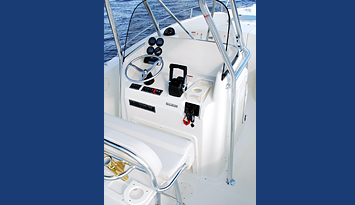

  Command Console:
    Forward console seat/built-in cooler with cushion & backrest
Tilt-away console
Interior lighting
Full fiberglass lined console storage
Two 12V receptacles in helm
Console courtesy lights

    Rod/storage racks in cockpit
Four S.S. gunwale mounted rod holders
Rod storage in cabin
Leaning post with tackle tray and storage drawers aft
Rod holders mounted on leaning post
Large in-floor fish box with overboard macerated pump out
49 gallon livewell in transom
Bait tray
Tackle lockers in transom
Corian® cutting surface inset on top of bait station

  Instrumentation, Equipment and Safety:
    Hydraulic steering
16" Custom cast aluminum steering wheel
Master circuit breaker box
Three bank battery system trays
12V electrical panel w/breakers
Two aluminum fuel tanks
18 gallon freshwater tank
Recessed trim tabs
Certification/Standard compliance, NMMA/ABYC, USCG,CE
Automatic bilge pumps (2)
Horn & Compass
Yamaha fuel managment system

Optional Equipment
Effective Date: February 01, 2005

  Boat w/Engine (Engine Installation Included):
    Yamaha® 200 hp Four-stroke (twin)
Yamaha® Pre-rig (Two-stroke twin)
Yamaha® Pre-rig (Four-stroke twin)

  Comfort and Convenience:
    Clarion® AM/FM stereo & CD w/4 speakers
Clarion® CD changed (must order stereo opt.)
Dive tank racks (center console)

    Auto anchor system
Wiring only (for windlass)
Battery charger with 110V dockside power
Pursuit Fighting Lady Yellow hull
Pursuit Oceana Blue hull
Pursuit Seamist Green hull

Instrumentation cover (Black)
T-top w/spreader light & rod holders (Black)
T-top with r. holders &Top Gun rad. arm outriggers
Black T-top windscreen (deletes the windshield)
Black Engine cover (each)
Color canvas (navy blue, forest green or khaki) N/C
Boot stripe (navy blue or forest green)
Shipping cradle

  Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Pursuit dealer.
