L.O.A. w/ Pulpit 30'0" 9.14M
  L.O.A. w/o Pulpit 28'0" 8.53M
  Beam 9'6" 2.90M
  Hull Draft 2'6" .76M
  Fuel Capacity 235 U.S. gal. 891L
  Approximate Dry Weight 5,250 lbs. 2381kg
  Holding Tank Capacity 20 U.S. gal. 76L
  Water Capacity 20 U.S. gal. 76L
  Deadrise 22°
  Clearance w/ t-top 8'9" 2.67M
  Clearance w/o t-top 7'0" 2.13M

Performance Reports
  Twin Yamaha 200 HPDIs
  Yamaha 225 EFI
  Yamaha F225 Four-stroke
  Mercury 225 Optimax
  OMC Johnson 225 (Ficht)

Standard Equipment

  Hull, Deck and Cockpit:
    5-year hull/deck structural & blister-free transferable warranty
1/2" S.S. bow and transom eyes (3)
Self-draining cockpit
One-piece welded 1" S.S. rail
Four 8" S.S. mooring cleats
Two 8" S.S. spring cleats
Leaning post w/rocket launchers
Cockpit courtesy lights
Forward rode/anchor locker w/overboard drain
Drink holders
Transom door
Cockpit coaming bolsters
Bow pulpit w/bow anchor roller
Four large storage compartments
S.S. grabrail
Armstrong® boarding ladder

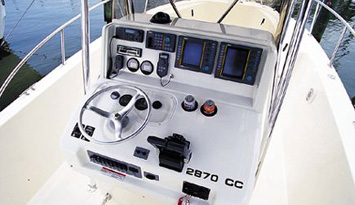

  Command Console:

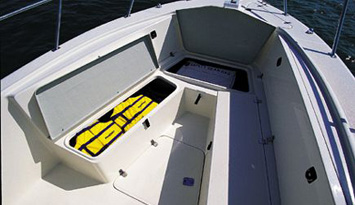

    Forward console seat/built-in coolerwith cushions
Tilt-away center console
Opening port light w/screen
Enclosed head compartmentw/china bowl head, manual pump out sink, pressure water
Interior lighting package (head)
Mold & mildew resistant fabric headliner
12V Receptacle in helm

    Rod racks in cockpit
Four S.S. rod holders

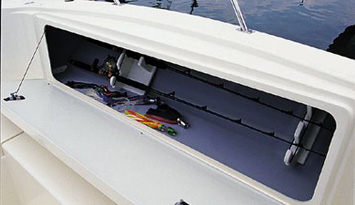

Lockable rod storage in gunwale, port & starboard

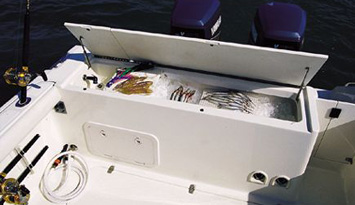

Insulated in-floor fishbox w/macerator pump out and overboard drain.

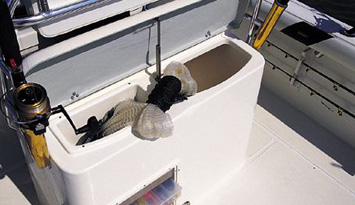

Leaning post w/30 gallon circulating livewell, freshwater sink & tackle storage
Large fishbox in transom
" Pursuit Plus" transom w/stern bait
& tackle rigging station w/removablecutting board, raw water supply

  Instrumentation, Equipment and Safety:
    Hydraulic steering
16" Custom cast aluminum steering wheel
Master circuit breaker box
Dual battery switch w/battery trays
12V electrical panel w/breakers
Two aluminum fuel tanks
20 gal. freshwater tank
Recessed trim tabs
U.S.C.G. & international lighting
Automatic bilge pumps (2)
Fire extinguisher
Horn & compass
Pursuit meets or exceeds all U.S.C.G. & N.M.M.A. standards
Yamaha Fuel Management System

Optional Equipment
Effective Date: August 01, 2003

  Boat w/Engine (Engine Installation Included):
    Yamaha® 200 hp Four-stroke (twin)
Yamaha® Pre-rig (Two-stroke twin)
Yamaha® Pre-rig (Four-stroke twin)

  Comfort and Convenience:
    China bowl head w/holding tank (electric)
Clarion® AM/FM stereo & CD w/4 speakers
Forward fishbox cushions
Poly sunpad filler with cushion

    Battery charger with 110V dockside power
Auto anchor system
Wiring only for windlass
Pursuit Oceana Blue hull
Pursuit Fighting Lady Yellow hull

T-top w/spreader light & rod holders (black)
T-top with Top Gun radial arm outriggers
T-top enclosure (deletes windshield)
Console cover (black)
Black engine cover (each)
Sprayhood (black)
Color canvas (navy blue, forest green or khaki) N/C
Boot stripe (navy blue, forest green)
Shipping cradle

  Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Pursuit dealer.
