L.O.A. w/ Pulpit 32'8" 10M
  L.O.A. w/o Pulpit 30'10" 9.40M
  Beam 10'6" 3.20M
  Draft (w/ Prop) 3'3" 1M
  Fuel Capacity 210 U.S. gal. 825L
  Sleeping Capacity 4
  Approximate Dry Weight 10,600 lbs. 4,548Kg
  Holding Tank Capacity 18 U.S. gal. 68L
  Water Capacity 30 U.S. gal. 113L
  Deadrise 21°
  Clearance w/ Hardtop/Arch 10'6" 3.20M

Performance Reports

  Crusader 5.7L Captain's Choice
  Cummins 250B
  Mercury 350 Horizon

Standard Equipment
  Hull, Deck and Cockpit:
    5-year transferrable limited warranty on hull and deck
White hull and deck
Constructed with a water-barrier outer gelcoat layer and hand-laid fiberglass with a specially formulated resin
Custom non-skid deck, cockpit
surface and gunnel boards
Acrylic sliding companionway door with lock
Day hatch in upper cockpit floor for engine access/routine maintenance
Port lounge seat, oversided ladder- back seat at helm
Bronze seacocks and underwater thru-hull fittings
Self-draining cockpit
One piece welded, 316L stainless steel bow rail
Two chrome plated bronze hawse hole deck pipes
Vented heavy duty aluminum windshield with built-in hand rails
Four opening aluminum port lights with screens
Flush forward rode locker with overboard drain
Molded-in fiberglass bow pulpit with S.S. bow roller
316L stainless steel foredeck cleat
Hullside engine exhaust
Three forward deck hatches with adjuster and screens
Molded-in heavy duty transom door and gate
Recessed fold down aft seat
Four 316L stainless steel 10" mooring cleats
Two 316L stainless steel 10" spring cleats
Recessed trim tabs
Integral fiberglass hullside engine room ventilation
Fiberglass gunnel boards
Cockpit coaming bolsters
Port & Starboard windshield wiper
Gold tip throttle knobs
Electric engine hatch lifting system

  Comfort and Interior:
    Carbon monoxide detector
Vinyl headliner
12V Indirect and spot lights
Underberth storage compartments in dinette area
Double berth forward with storage underneath
Hanging locker with light
Reading lights
110V outlet/GFI protected

    Electric Vacu-Flush® head system Full head/shower with sump pump
S.S.sink with hot and cold pressure water system
Port light for ventilation
110V outlet GFI protected
Granite Cote® vanity top with storage compartment under sink
Vanity mirror

    Complete galley with Granite Cote® counter top
Sink with hot and cold pressure water system
One-burner electric stove
AC/DC refrigerator
Storage cabinets

    Four S.S. rod holders
Raw water washdown system
In floor removable fishbox / storage
with macerator pump out
Prep center sink and cutting board with tackle locker
Live bait circulating system

  Instrumentation, Equipment and Safety:
    Pursuit custom master circuit breaker switch panel for 12V and 110V
Reverse polarity indicator
One 30-amp 50' dockside power cord with adapter
Hydraulic steering system with cast custom aluminum wheel
Fireboy automatic extinguisher (FE 241) High speed bronze axe head rudders and struts
Aquamet® 22, 11⁄2" prop shafts
Nibral propellers
Bonding system with transom and shaft zincs
Gauges including:
- Rudder indicator
- Volt meters
- Fuel gauges
- Temperature gauges
- Hour meters
- Oil pressure gauges
- Tachometers
Audible engine alarms
Deluxe Ritchie® compass
Engine room light
Gray gelcoat painted bilge
Tides® water cooled shaft logs
Raycor® fuel filters with water
separators (diesel)
Fresh water cooling
Morse® engine controls
Water heater (6 gallon)
Fresh water tank, 30 gallon
Cockpit courtesy lights
Two bilge blowers
Two manual/automatic bilge pumps
One 20-amp battery charger
U.S.C.G. and International approved lighting
U.S.C.G. and B.I.A. ventilation standard
Custom Pursuit battery management system

Optional Equipment
Effective Date: August 01, 2003

  Boat w/Engines (twin):
    Crusader 5.7L MPI's (320hp)
Cummins Diesel 4B Series (250hp)

    Kohler (4.0 KW) Gas
Panda (4.0 KW) Diesel

  Hull Group:
    Hull Group:
Swim platform w/built-in ladder
Boarding ladder

  Mechanical Systems:
    Wire only for windlass
Rode anchor windlass system
Engine Synchronizer (Cummins only)

  Deluxe/Comfort Group:
    Solid teak and maple cabin floor
Air conditioning w/reverse cycle (7,000 BTU)
Clarion® AM/FM/CD player w/6 speakers
6 CD changer (must be ordered w/ stereo option)
TV/Phone inlet and cabin outlets
Color 9" TV/VCR
TV antenna
Dockside water connection
Cockpit shower
Ice maker

  Fabric Choices:
Ocean fabric (Dune fabric standard) N/C
Pursuit Fighting Lady Yellow hull
Pursuit Oceana Blue hull
Pursuit Seamist Green hull

  Sportfish Group:
    Outriggers, Rupp® 23'
Rod holders for hard top
Cabin forward rod holders (4)
Cabin forward rod holders (8)

  Weather Group:
Aluminum arch with bimini top, side enclosures, and clear front connector
Hardtop with spreader light, side enclosures, and clear front connector
3-Piece drop curtain
Color canvas (navy blue, forest green or khaki) N/C
Shipping cradle

  Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Pursuit dealer.

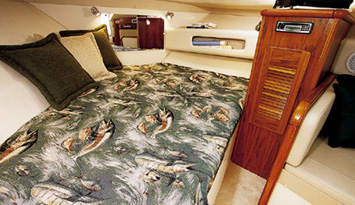

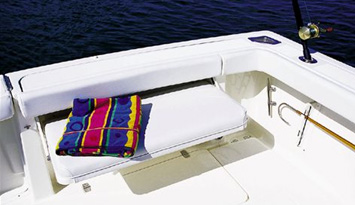

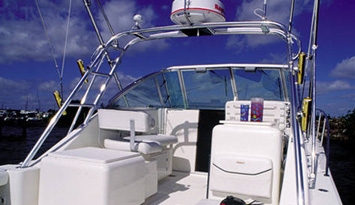

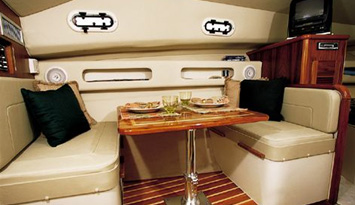

Detail Photos
