L.O.A. w/ Pulpit 31'2" 9.50M
  L.O.A. w/o Pulpit 29'1" 8.86M
  Beam 12'0" 3.66M
  Draft (w) pocketed prop 3'0" .91M
  Fuel Capacity 250 U.S. gal. 948L
  Fuel Capacity w/ optional long-range tank (gas engines only, N/A w/ generator) 285 U.S. gal. 1080L
  Sleeping Capacity 4
  Approximate Dry Weight 11,500 lbs. 5,221Kg
  Holding Tank Capacity 20 U.S. gal. 76L
  Water Capacity 40 U.S. gal. 152L
  Deadrise 19°
  Clearance w/ Hardtop 9'2" 2.79M
  Clearance w/ tower 16'3" 4.95M
Performance Reports
  Mercury 7.4 MPI L21
  Volvo KAMD 300 1B
  Volvo KAMD 42
  Volvo KAMD 44
  Crusader 8.1L MPI

Standard Equipment

  Hull, Deck and Cockpit:
    5-year hull/deck structural & blister free transferable warranty
Self-draining cockpit w/scuppers
One-piece welded 1-1/4 " S.S. rail
Four 10" S.S. mooring cleats
Two 8" S.S. spring cleats
Bronze seacocks & all underwater thru hull fittings
Two chrome bronze hawse hole deck plates
Fiberglass navigation chart area
S.S. rubrail
Three aluminum deck hatches
Hullside exhaust
Electric hatch lifters
Hardtop w/clear connector, side curtains, lighting, grab rail & radio box
Three adjustable pedestal seats (deluxe)
Fishbox cushions
Fiberglass hullside ventilation
Removable bilge grate
Molded-in cockpit steps
Foredeck cleat for anchor
Dockside power w/battery charger
Tilt-away, handlaid fiberglass helm
Cockpit courtesy lights
Forward deck hatch w/screen
Forward rode/anchor locker w/overboard drain
Companionway hatch w/door & lock
Drink holders
Molded-in transom door
Molded-in fiberglass bow pulpit
Raw water washdown
Fresh water washdown
Gold tip throttle knobs
Bow anchor roller

  Comfort and Interior:
    Indirect & spot 12V lights
Teak & holly sole
Mold & mildew resistant fabric headliner
Teak doors
Vertical rod storage cabinet w/acrylic door
Two horizontal rod storage areas
Underberth storage in main salon
Companionway steps w/storage Starboard side lounge w/backrest cushions convert to upper berth
Hanging locker starboard
Double berth forward w/drawer storage
Galley w/neutral colored fiberglass countertop, S.S. sink w/pressure water, one burner 110V stove, microwave, AC/DC refrigerator & dish locker
Enclosed head w/vanity storage, manual marine head w/20 gal. holding tank, cabinet w/mirrored doors, mirror, sink w/pressure water & full fiberglass head/shower w/sump pump & curtain
Clarion® remote AM/FM stereo & CD w/4 speakers

    Four Lee's® rod holders
Transom fishbox w/overboard drain
Bait & tackle rigging station w/sink, cutting board & an insulated circulating livewell
Tackle lockers w/drawers
Two fish/storage/cooler boxes under seats

  Instrumentation, Equipment and Safety:
    Hydraulic steering w/16" custom aluminum cast wheel
Master circuit breaker switch 12V & 110V
110V dockside power
Triple battery system w/switches
High-speed bronze axe head rudders & struts
Dual instrumentation w/tachometer, volt meter, hour meter, temperature, oil pressure & fuel gauge
250 Gallon aluminum fuel tank
Rudder indicator
Armco® Aquamet® ,19, 1-3/8" prop shafts
Two Nibral propellers
Zincs, transom & shafts
Six gallon hot water heater w/exchanger
40 gal. fresh water tank
Engine room lights
Water cooled PSS shaft logs
Reverse polarity indicator
Morse® engine controls
U.S.C.G. & international lighting
Twin Vernay® mufflers
Automatic halon system
Two fire extinguishers
Engine room insulation
Two bilge blowers
Two automatic bilge pumps
Raw water intake strainers
Fuel filters/water separators
Single horn & compass
Molded-in electronics storage
Pursuit meets or exceeds all U.S.C.G. & N.M.M.A. standards

Optional Equipment
    Effective Date: August 01, 2003

    Crusader 8.1 (375 hp) (twin)
Volvo® KAD300 285hp (twin)

    Anti-fouling bottom paint (black)
Generator set (7.0 KW gas)
Generator set (5.0 KW diesel)
Anchor windlass w/rode
Wiring only (windlass)
Long range fuel - 35 gal. (gas engines only & no generator)
Air Separators (diesel only)
Oil Changing Sys. (diesel only)
Spare props - gas
Spare props - diesel
Spare shaft
Pursuit Fighting Lady Yellow hull
Pursuit Oceana Light Blue hull

    Rupp® outriggers 23' (wishbone)
Rupp® outriggers 26' (wishbone)
Marlin tower w/controls (gas)
Marlin tower w/controls (diesel)

  Comfort and Convenience:
Air conditioning w/reverse cycle (12,000 BTU)
China bowl head w/holding tank (electric)
Y-valve w/in-line macerator
TV & phone inlets & cabin outlets
TV antenna
Ocean fabric N/C
Midnight Lights fabric N/C
Dune fabric N/C
Meridian fabric N/C
Fiberglass swim platform w/ladder
(only w/gas engines & hardtop)
6 Disc changer and subwoofer
Dockside water inlet
Cockpit shower
Washdown - f.w. anchor locker
Washdown -r.w. anchor locker

Gray Helm N/C
White Helm (STD) N/C

Tinted venturi windscreen
Ivory drop curtain (3 piece)
Canvas coor (navy, forest gn, khaki) N/C
Shipping cradle

Custom bootline
Countertops: Neutral accent (std) N/C
Countertops: Blue accent N/C
Countertops: Green accent N/C

  Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Pursuit dealer.

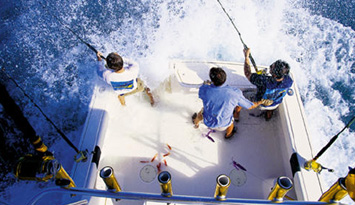

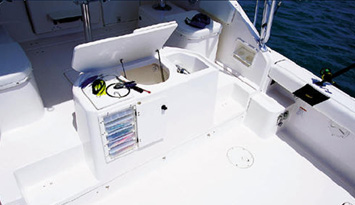

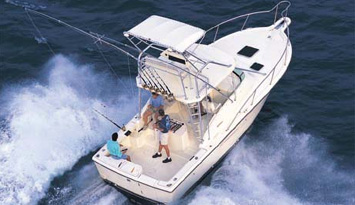

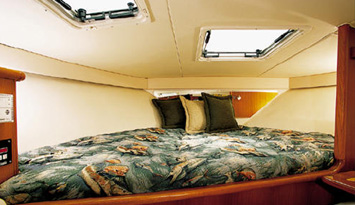

Detail Photos
