2870 WALKAROUND
SPECIFICATIONS





Specifications
  L.O.A. w/ Pulpit 30'0"
  L.O.A. w/o Pulpit 28'0"
  Beam 9'6"
  Hull Draft (motors up) 1'9"
  Hull Draft (motors down) 2'6"
  Fuel Capacity 234 U.S. gal.
  Approximate Dry Weight
(with twin 225 four strokes)
7,570 lbs.
  Maximum Horsepower 450
  Sleeping Capacity 2
  Holding Tank Capacity 20 U.S. gal.
  Water Capacity 20 U.S. gal.
  Clearance w/ Hardtop 9'2"
  Deadrise 22°

Performance Reports
  Twin 225 HP Yamaha Four-Stroke
  Twin 250 HP Yamaha Four-Stroke


Standard Equipment

  Hull, Deck and Cockpit:

Pursuit® Protection Plan: 5-year hull/deck structural warranty, 5-year blister-free warranty, 2-year limited warranty
1/2" S.S. bow eye
Self-draining cockpit
One-piece welded 1" S.S. rail
Four 8" S.S. mooring cleats
Two 8" S.S. spring cleats
Two deluxe adjustable pedestal seats
Hardtop w/spr light, front & side encl.
Tilt-away, handlaid fiberglass helm
Custom welded aluminum wind shield w/side ventilation & grab rails
Cockpit courtesy lights
Forward deck hatch w/screen
Forward rode/anchor locker w/ overboard drain
Companionway hatch w/door & lock
Drink holders
Transom door
Cockpit coaming bolsters
Bow pulpit w/bow anchor roller
Armstrong® boarding ladder
Backrest on aft facing seats
Molded-in hinged aft seat w/fishbox/ cooler underneath
Battery charger w/110V dockside power


  Comfort and Interior:

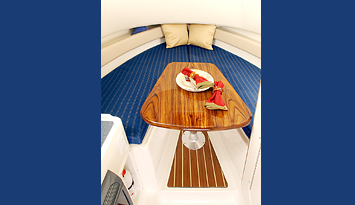

Comfortable V-berth w/Cabana fabric
V-berth filler cushion
Storage compartment under V-berth
Aft cabin berth

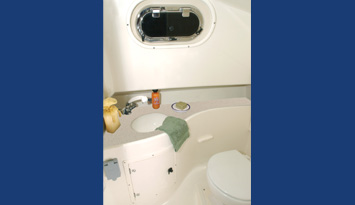

Enclosed head compartment w/ Corian® top w/sink, pressure water, marine head w/holding tank & macerator
Interior lighting package
Three opening stainless steel port lights w/screens

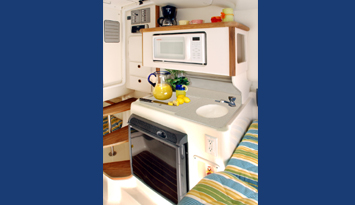

Galley w/sink w/pressure water, icebox & Corian® counter top
AC/DC refrigerator
Teak & holly floor
Vinyl headliner
Microwave
Clarion® AM/FM stereo & CD w/4 Speakers


  Fishing:

Rod racks in cockpit
Four S.S. rod holders
Insulated fishbox/cooler in stbd seats
Circulating livewell under port seats
"Pursuit Plus" transom w/removable cutting board, raw water supply & fresh water sink w/shower


  Instrumentation, Equipment and Safety:

Hydraulic steering
16" Custom cast aluminum steering wheel
Master circuit breaker box
Dual battery switch w/battery trays
12V electrical panel w/breakers
Two aluminum fuel tanks
20 gal. freshwater tank
Recessed trim tabs
U.S.C.G. & international lighting
Automatic bilge pump
Fire extinguisher
Horn & compass
Starboard windshield wiper
12V accessory receptacle in helm
Grab rail
Pursuit meets or exceeds all USCG & NMMA standards
Yamaha Fuel Management System
Carbon monoxide detector
Port windshield wiper
Tilt-away console


Optional Equipment

Effective Date: August 01, 2005


  Boat w/Engine (Engine Installation Included):

Yamaha® 250 Four-stroke (twin)


  Mechanical:

Auto anchor system
Wiring only (for windlass)


  Fishing:

Rod holders for hardtop
Cabin Rod holders (4)


  Comfort and Convenience:

Electric head w/ holding tank & macerator
Water heater
6 CD Changer
Sirius satellite radio (includes 1 yr service)


  Weather:

E-Tec radial arm outriggers
E-Tec radial arm outriggers w/telescoping poles
Black drop curtain (3 piece)
Black engine covers
Color canvas (navy blue, forest green or khaki)
Shipping cradle


  Color Selections:

Pursuit Fighting Lady Yellow hull
Pursuit Oceana Blue hull
Boot stripe black (standard)
Boot stripe color (navy, silver or forest green)
Fabric Options: Tranquility, Key Largo or Chesapeake


  Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Pursuit dealer.
