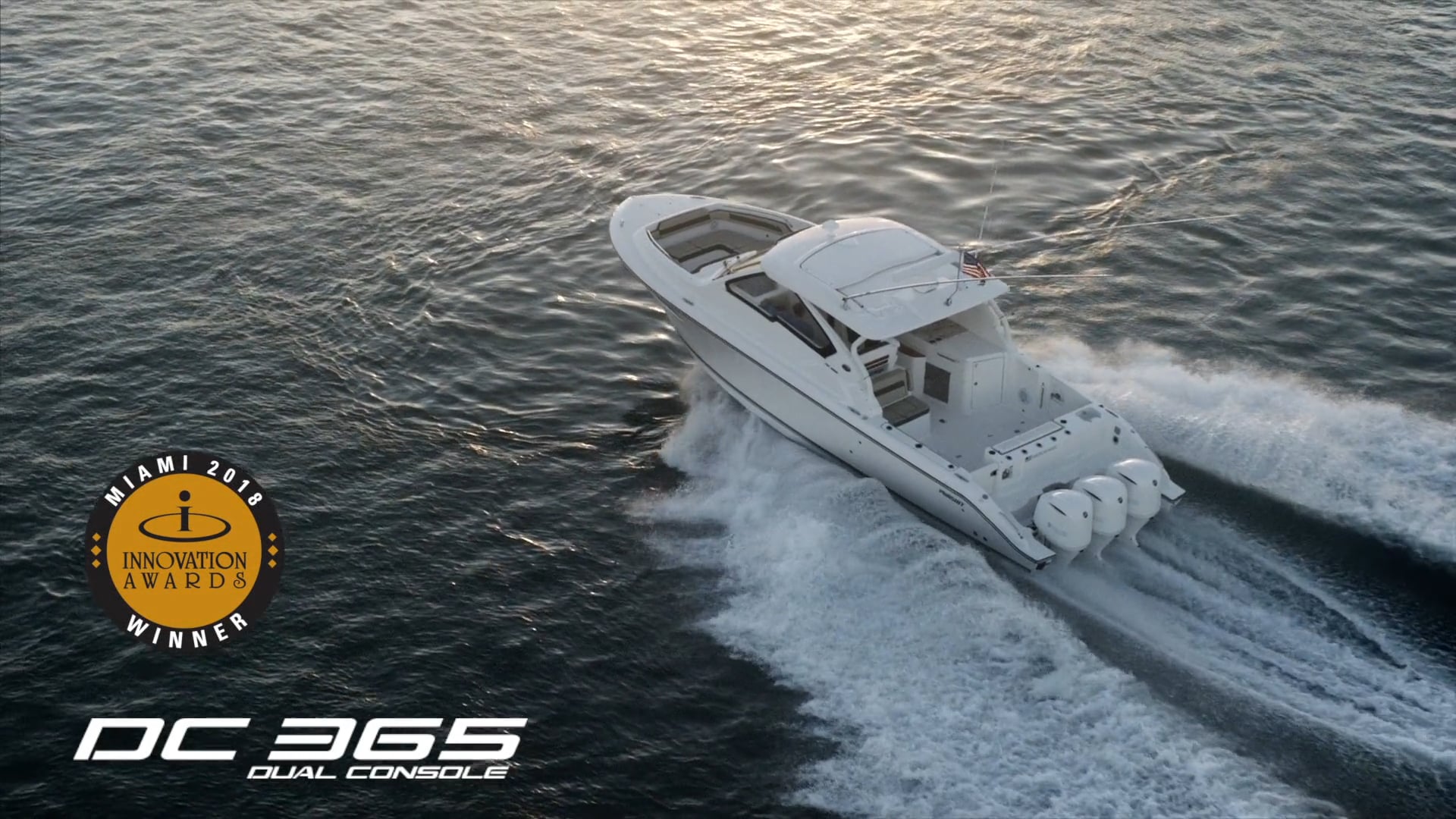

DC 365 Dual COnsloe



Specifications Preliminary

  • L.O.A. 37’ 11” (11.56 m)
  • Beam 12' 0" (3.66 m)
  • **Fuel Capacity 325 U.S. gallons (1,230 L)
  • Fresh water Capacity 42 U.S. gallons (159 L)
  • Holding Tank Capacity 22 U.S. gallons (83.28 L)
  • Max. Horsepower 900 hp (671 kw)
  • Deadrise 20°


*Hardtop Clearance shown does not include options which could increase this height dimension.
**Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.


DC 365 Product Brochure - View Online
Full Line Product Catalog - View Online









The stylish Dual Console line that has been perfected by pursuit is expanding to include the all new DC 365. More comfort, innovation and features have been engineered to bring your sport utility experience to the next level. Forward bow and port side lounge seating, a swivel seat at the helm and patent-pending fold away seating at the transom and under the gunwale give your crew a comfortable place to enjoy whatever type of water activities you choose.

Features include a large tempered glass windshield with walkthrough, wide walkways from bow to stern and plenty of large storage compartments. Instrumentation and controls at the helm are ergonomically engineered and an optional Garmin electronics suite makes the DC 365 a joy to operate. The cabin is easily accessible with a fiberglass door and features solid wood accents with modern finishes, a full berth forward and a comfortable aft berth. A small family or couple may overnight with basic amenities for the weekend. Hull side windows reveal plenty of natural light below.

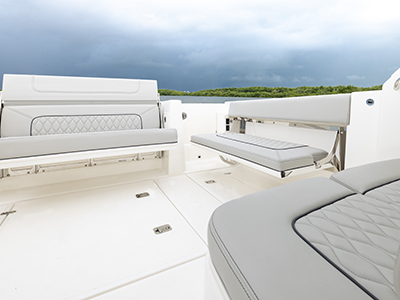

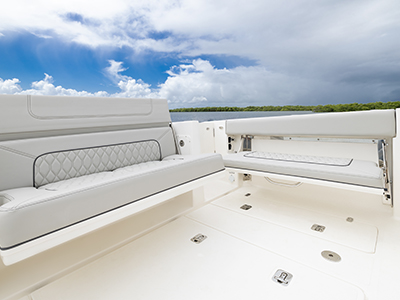

Foldaway seating quickly transforms a social venue to a wide-open, fish-ready cockpit with hull side door, livewell, gunwale mounted rod holders and insulated fish-boxes in the floor.

The DC 365 can do it all with room to spare and style that is Pure. Pursuit.



Standard Equipment Preliminary

Effective date: SEPTEMBER 19, 2017

HULL FEATURES

  • Pursuit® Protection Plan:
    5-year hull/deck structural warranty
    5-year blister-free warranty
    2-year limited warranty
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 5/8" 316L Stainless Steel
  • Integrated Transom Platform Extensions Outboard of Engines
  • Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform
  • Bow Thruster, 3.0 HP (2.2 kW) with Group 31 AGM Battery, Switch and Fuse
  • Molded Hull Side Frameless Tempered Glass Windows
  • Dedicated Transducer Location
  • Forward Hull Compartmentation with One (1) 1100 GPH Bilge Pump with Automatic Float Switch

Deck Features

  • Hull and Deck Joint: Mechanically Fastened and Includes Aluminum Backing Plates At Cleat Locations
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Transom Cap, 316L Stainless Steel
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote
    Switch at Anchor Locker
    316L Stainless Steel Through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder
    22lb 316L Stainless Steel Plow Style Anchor, Self-Righting Shackle and 200' Rode (1/2" 8 Plait including 10' of ¼” G4 Chain)
    Fresh and Raw Water Washdown
  • Cleats, 316L Stainless Steel, 10" Pop Up (2) Stern (4) Spring and (2) Bow
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Bow Grab Rails, 316L Stainless Steel (port & starboard)
  • Transom Grab Rails, 316L Stainless Steel (port & starboard)
  • Molded Non-Skid Step in Splashwell for Athwartship Access
  • Navigation Lights, LED, 2 mile

COCKPIT FEATURES

  • Side Boarding Door (starboard side) with Removable/Storable Ladder and Handrail
  • Custom Upholstery with Dri-Fast Foam and Mesh Backing

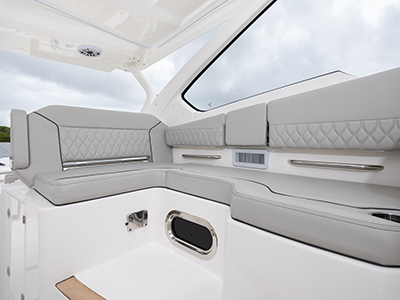

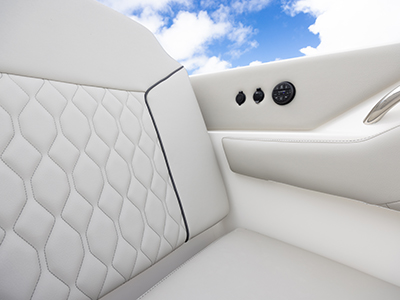

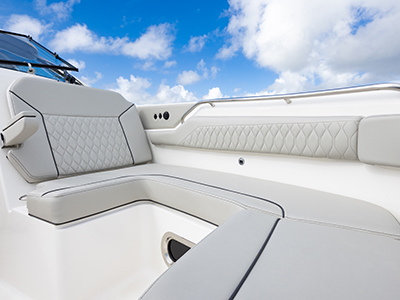

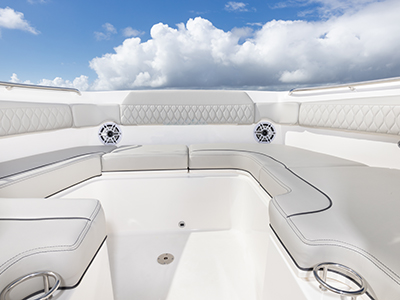

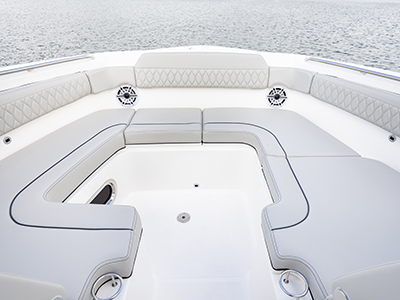

  • Molded Port Forward Bow Seating with Flip-down Armrests, 12V, (2) USB and Stereo Remote
  • Molded Stbd Forward Bow Seating with Flip-down Armrests, Lockable Dedicated Storage for Dive Tanks, Fenders, and Rods

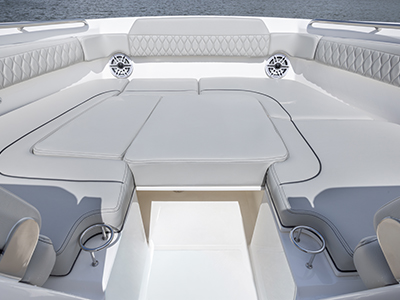

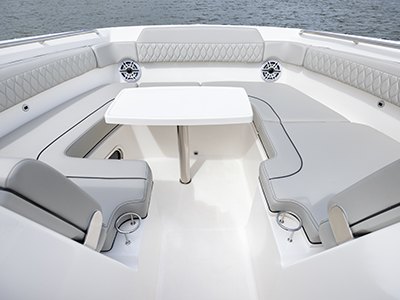

  • Forward Cockpit Table/Bow Sunpad Filler Storage
  • Single Piece Acrylic Bow Access Door with Water Management System

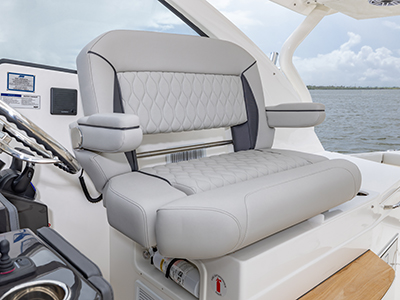

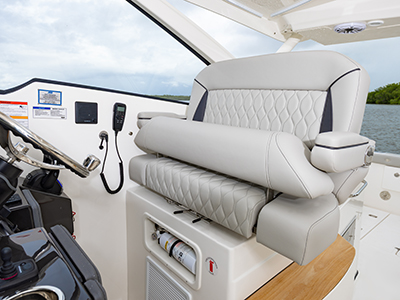

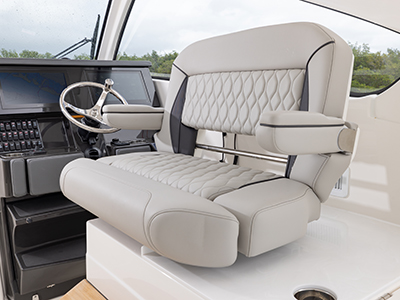

  • Captain’s Twin Bench Seat with Swivel Base, Foldable Armrests, Fore and Aft Adjustments and Flip-up Bolster

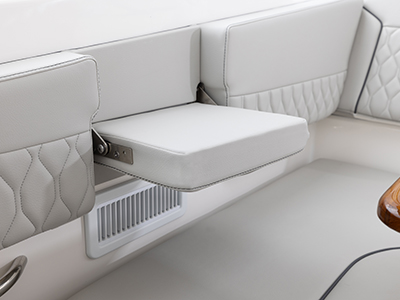

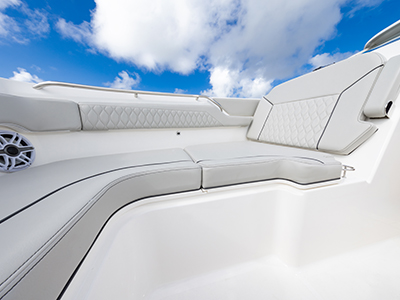

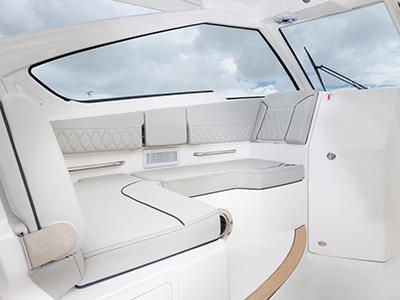

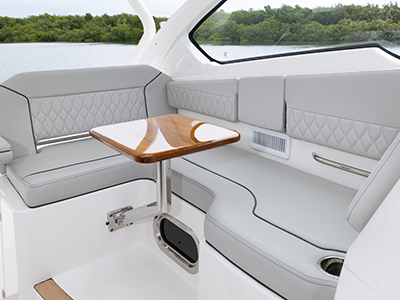

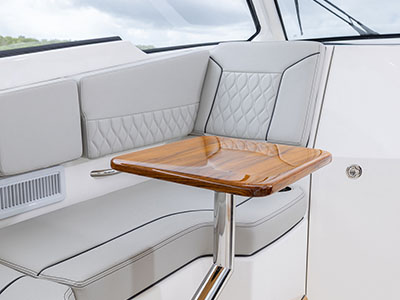

  • Molded Port Bridge Lounge Seating (forward or aft facing), Molded Footrest & Folding Port Gunwale Armrest with Cup Holders
  • Starboard Side In-floor Storage (N/A with Helm Master Option)
  • Pursuit Cockpit JL® Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, JL Audio Speakers (7 Total, 4 in Hardtop, 2 Bow & Subwoofer) and Amplifier

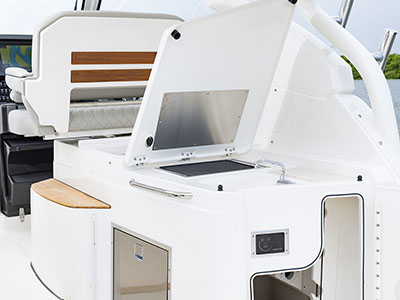

  • Molded Entertainment Center with Corian Accents, Molded Sink, Hot/Cold Mixing Faucet, Electric Grill, Cutting Board, Dedicated Storage, 120V Outlet with GFI Protection, Hinged Fiberglass Lids and Doors and Lockable Storage for 3 Rods.
  • 1.3 cu. ft. Bridgedeck Refrigerator/Freezer with Fiberglass Lid
  • Bridge Step with Hardwood Accents

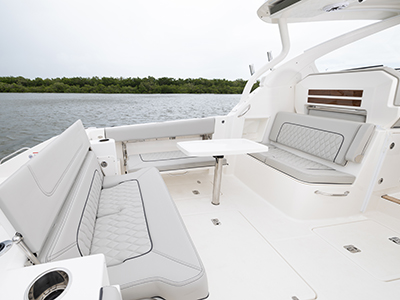

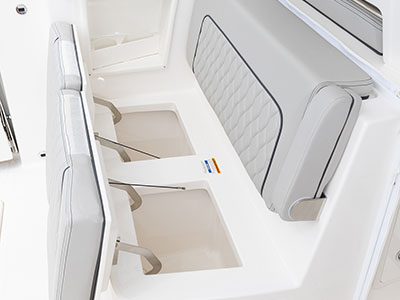

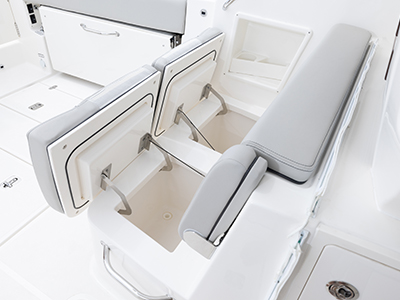

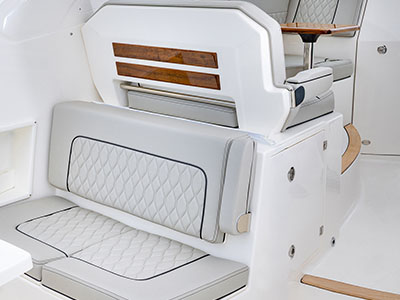

  • Molded Port Aft Facing Seats w/Insulated Storage (2) Below and Armrest

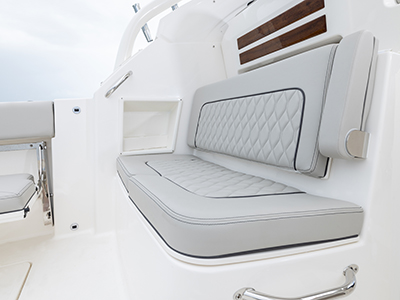

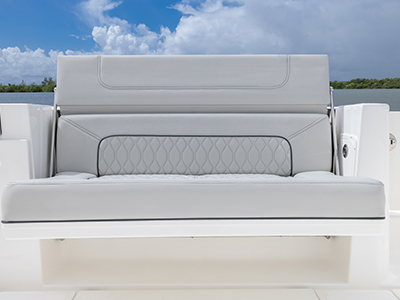

  • Transom Seat with Patent-Pending Folding Backrest
  • Folding Seat (portside) Under Gunwale

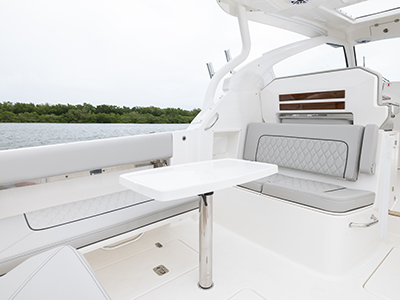

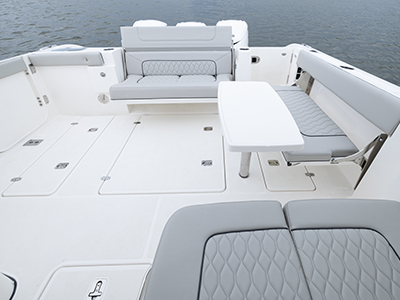

  • Custom Molded Cockpit Table with Pedestal and Dedicated Storage
  • Cockpit Machinery Access Hatch
  • Fresh Water Wash with Hot/Cold Mixing Valve and Pull out Sprayer in Aft Cockpit
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
  • Mid-Level Accent Lighting (4)
  • Drink Holders, 316L Stainless Steel: Two (2) at Bridges Lounge, Two (2) in Bow, Two (2) at Helm, Two (2) in Transom Wall and One (1) in Gunwale (portside)

Fishing Features

  • Rod Holders (4), Stainless Steel, In Gunwale
  • Lighted Oceana Blue 28 Gallon Recirculating Live Well with Acrylic Lid

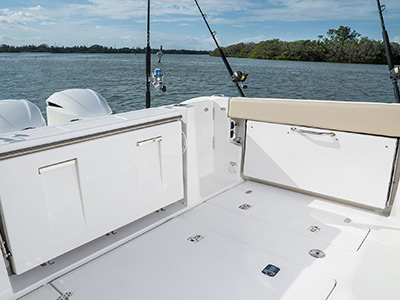

  • Port Side Fish Box, Insulated and Diaphrahm Pumps (2) with Overboard Discharge

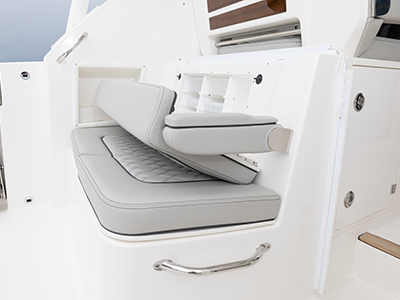

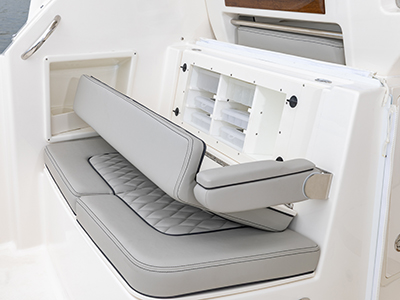

  • Cockpit Tackle Center Built-in Port Aft Facing Seat
  • Transom Rod Holders (5)

Hardtop

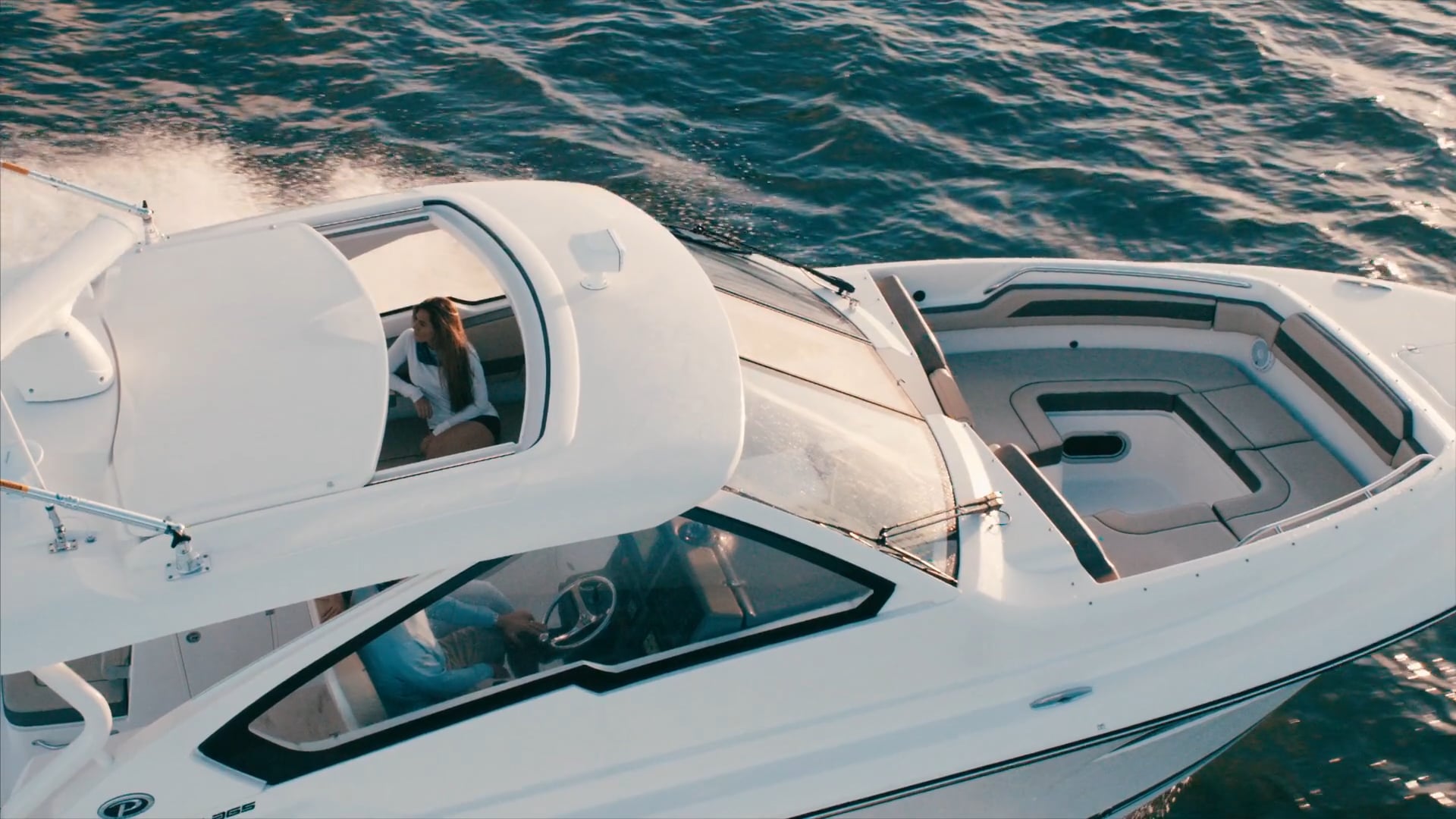

  • Custom Molded, Full Beam Sunroof with Opening
  • Molded Fiberglass Hardtop Integrated Visor
  • Powder Coated Aft Structural Hardtop Supports
  • Custom Tempered Glass Windshield System with Fiberglass Side Frame, Fwd Aluminum Bow Access Walk-thru
  • Custom SS Ratcheting Anchor/Stern LED All-around Navigation Light
  • Four (4) Tri Color LED Lights
  • Fore and Aft Facing Spreader Light
  • 60 mil Strataglass Side Curtains
  • 3 Piece Drop Curtain
  • Integrated Stereo Speakers (4)
  • Integrated Port & Starboard Overhead Glove Boxes
  • Horn, Dual Trumpet

Helm

  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Foot Rest with Teak Accent/Platform and Safety Lanyard
  • Teleflex Tilt Sport Helm
  • 316L SS Steering Wheel with Textured Grip and Control Knob
  • 12V Switch Panel
  • Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control
  • Compass
  • Glovebox Drawer
  • Trim Tab Control Panel and Indicator
  • Two 12V Outlets (2) and Dual USB Charger (1)
  • Fire Extinguisher

Interior Cabin

  • Fiberglass Access Door and 316L SS Locking Latch
  • Cabin Entry Steps with Custom Handrail and Wood Treads
  • Molded Cabin Hull Liner with Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access, Drainage and Sound Damping Insulation
  • Molded Cabin Deck Liner with Sound Damping Insulation
  • 240V/60 Cycle Interior Air Conditioning w/Reverse Cycle Heat and Sound Shield. 10,000 BTU Self Contained Unit for Cabin Interior with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • Switch Panel with LED Floor Accent Light (2), Overhead Lights (3), Fwd and Aft Reading
  • Lights (2)
  • CO Monitors (2)
  • Ultra Leather Portside Salon Settee
  • Fwd Berth with Cushions
  • Throw Pillows (5)
  • Hullside Windows in Forward Berth
  • 316L SS Opening Port Lights with Screens (Fwd and Aft)
  • 12V Outlet (1) and Dual USB Charger (1)
  • Pursuit Digital Media Ready Entertainment Center with 28" LED TV and UFO Antenna
  • 120V Outlet with GFI Protection
  • Rod Storage (4 Vertical/2 Horizontal)
  • Fire Extinguisher
  • 0.7 ft3 120V Microwave Oven
  • Trash Receptacle
  • Aft Berth with Recessed 6" Foam Mattress
  • Hanging Locker with Cedar Lining

Head (Starboard)

  • Patented Molded Acrylic Access Door and
  • 316L SS Locking Latch
  • Entry Steps with Custom Handrail and Wood Treads
  • Fiberglass Enclosed Head Compartment with Solid-wood Flooring and Non-Skid Pattern Shower Area
  • Tempered Glass Skylight
  • Designer Sink with Corian® Countertop with Storage Cabinet Below
  • Vacuum Flush Marine Head with 22 Gallon Holding Tank, Macerator Discharge Pump, Deck Pump-out Fitting and Bronze Thru Hull Fitting
  • Fiberglass Toilet Seat Cover
  • Full Height Linen Closet with Shelves and Acrylic Bi-Fold Shower Divider
  • 316L SS Opening Port Light with Screen
  • Vanity Storage Cabinet with Shelves and Vanity Mirror
  • Toilet Tissue Holder
  • Grab Rail/Towel Rack
  • Shower with Hot/Cold Mixing Valve, Shower Wand and Adjustable Height Bar
  • Shower Sump Box Drain with Automatic Discharge
  • Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)
  • 120V Outlet with GFI Protection (1)

Electrical System

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom Built, One Piece Electrical Harness with Water Proof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front & Back) Main Breaker Panels
  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
  • Three 120V Outlets with GFI Protection (3)
  • One 40 AMP Battery Charger For House, Electronics and Bow Thruster Bank
  • One 25 AMP Battery Charger for Engine Bank
  • Fullly Isolated Dockside Power System with 240V/50 Amp Power Connection and Electrically Operated Retractable Shore Cord (50')
  • One Grounding Bus Bar
  • Five 12V Outlets (5) and Four Dual USB Chargers (4)
  • Six Battery System with Service Slide: Port Engine (1), Center (1), Starboard Engine (1), Bow Thruster (AGM) (1) House (AGM) (1), and Electronics (AGM) (1)
  • Electronics Fuse Block

Mechanical Space

  • Molded Interior White Gel Coat
  • Molded Hatch with Gasket and SS Gas Spring
  • Molded Bilge Sump Area
  • One 900 GPH Bilge Pump with Electronic Switch, One 1500 GPH Bilge Pump with Electronic Switch, One 1500 GPH Bilge Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
  • Fresh Water Pump with Filter
  • Raw Water Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • Livewell Cyclone Pump with Bronze Sea Strainer
  • Aft Mechanical Space Step
  • Dedicated storage for 5 Gallon Bucket and Stern Anchor
  • Dedicated Storage for Dive Ladder

Generator

  • 240V/60 Cycle 8.0 kW Fischer Panda® Diesel Generator with Sound Shield and Service Slide
  • EPA Compliant Lined 23 Gallon Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and 316L Stainless Steel Deck Fill Plate

Fuel System

  • EPA Compliant Lined 325 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fill Plate
  • Custom Built Fuel Lines with Mechanically Crimped Fittings
  • Three Yamaha® Water Separating Fuel Filters with Primer Bulbs

Water System

  • 42 Gallon Water Tank with Level Indicator and 316L Stainless Steel Deck Fill Plate
  • Custom Built Reinforced Color Coded Water Hose
  • Pressure Sensing Pump
  • Dockside Fresh Water Inlet with Pressure Regulator
  • 240V 60 Cycle 6 Gallon Stainless Steel Water Heater
  • Cockpit Shower with Hot/Cold Mixing Valve
  • 16 Circuit Fresh Water Distribution Manifold with Dedicated Valves

Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation.
Some of the boats shown include optional or dealer-installed equipment.





Optional Equipment Preliminary

BOAT w/ENGINES:

  • Triple Yamaha® Electronic F300
  • Yamaha Helm Master™ Steering System w/Set Point

COLOR SELECTIONS

  • Hull Color
    • Fresh White
    • Titanium
    • Cashmere
    • Pursuit Navy Blue
    • Pursuit Stars & Stripes
  • Helm Color
    • Titanium - Standard
    • Cashmere
    • Pursuit Navy Blue
    • Pursuit Stars & Stripes
  • Boot Stripe Color
    • Black/Black - Standard
    • Navy/Navy
    • Platinum/Platinum
    • Red/Red
    • Scarlet/Scarlet
    • Artic White/Quartz Grey
    • Artic White/Sand Castle – Cashmere Hull Only
    • Custom
  • Fresh White Painted Engine w/Platinum Decals
  • Fabric Crossroads
  • Fabric Enticement

MECHANICAL SYSTEMS

  • 240V/60Hz Cockpit Air Conditioning System, 16,000 BTU
  • Blue/White Underwater Lights (4)
  • Bow Tow Eye

COMFORT & CONVENIENCE

  • 12V, 2.3ft3 FRP Insulated Cockpit Refrigerator w/Temperature Control
  • Bridgedeck Teak Table w/Storage

WEATHER GROUP

  • Custom Hardtop Integrated SS Electric Retractable Sunshade w/One Touch Operation
  • Stowable Forward Sunshade
  • Sunbrella® Canvas Color (Black, Tweed, Cadet Grey or Navy)
  • Upgraded Canvas - Stamoid® (White)
  • Aft Curtain - Sunbrella®
  • Aft Curtain - Stamoid® (White)
  • Instrument Cover - Sunbrella®
  • Engine Covers - Sunbrella®
  • Bow Tonneau Cover - Sunbrella®
  • Bow Tonneau Cover - Stamoid® (White)

SPORT FISHING

  • Revolution Hardtop Mounted Outriggers w/18’ Telescoping Poles

ELECTRONICS

  • Garmin® Electronics Package: Includes: GPSMAP 7616XSV Display, GPSMAP 7616 Display, Airmar B165 20 Degree 1KW Transducer, NMEA 2000 Starter Kit, Pursuit Custom Dash Panel, Yamaha Gateway with Cable, VHF 300, VHF Antenna Galaxy 5225XP
  • Garmin® Radar Open Array GMR 424 xhd2
  • Garmin® Reactor Corepack w/Smartpump Auto Pilot
  • Garmin® GHP Reactor Auto Pilot (with Helm Master)
  • Yamaha Gateway w/Helm Master
  • Spotlight w/Remote Control at Helm
