Hull, Deck and Cockpit
|
| |
|
5-year
transferable limited warranty on hull and deck
White hull and deck
Constructed with a water-barrier outer gelcoat layer and hand-laid
fiberglass with a special formulated resin
Deco-Lite stringers encapsulated in hand-laid fiberglass integrated
into hull
Custom diamond pattern non-skid deck, cockpit surface and gunnel
boards
Viplex curved companionway door on center line
Molded-in chart area (port side)Drink holders, port & starboard
Drink holders, port & startboard

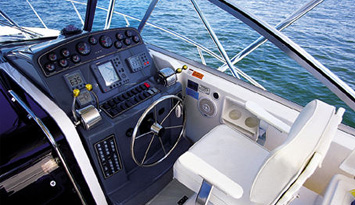

Tilt-away starboard side fiberglass helm/command center
Day hatch in upper cockpit floor for engine access/routine
maintenance

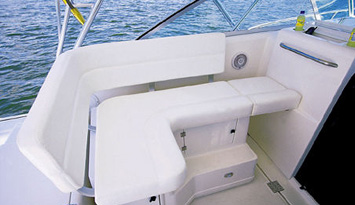

Starboard helm seat, port "L" lounge seat

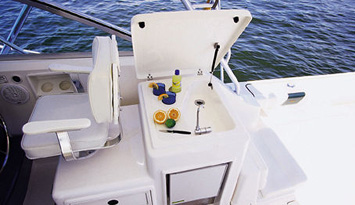

Behind helm seat, cooler / sink basin with storage
Bronze seacocks and all underwater thru-hull fittings
Self-draining cockpit with large scupper drains
One piece welded, 11⁄4" 316L stainless steel bow
rail
Two chrome bronze hawse hole deck plates
Aluminum reinforcing plate (24"x24") installed in
cockpit for mounting fighting chair
Heavy duty aluminum windshield with built-in hand rails
Four opening aluminum port lights with screens
Flush forward rode locker with overboard drain
Molded-in fiberglass bow pulpit
316L stainless steel foredeck cleat
Hullside engine exhaust
(3) deck hatches with adjusters and screens
In floor storage box (stb.cockpit)
Molded-in heavy duty transom door and gate
Four 316L stainless steel 10" mooring cleats
Two 316L stainless steel 10" fender cleats
Two 316L stainless steel 10" spring cleats
Flush recessed trim tabs
Integral fiberglass hullside engine room ventilation
Custom gelcoat boot stripe graphics
Fiberglass covering boards
Molded-in cockpit steps
110V GFI Outlet (15 amp)
Cockpit coaming bolsters
|
| |
Comfort and Interior
|
| |
|
Carbon monoxide detectors
Mold and mildew resistant fabric hull and headliner
Indirect and spot 12V lights
AM/FM cassette stereo with four speakers
Underberth compartments in main salon for equipment/rod storage
Booth style dinette
Custom teak table with inlaid fish design
Pedestal berth forward with storage underneath
Hanging fiberglass wet locker with light
Reading lights
110V outlet/GFI protected
Teak doors
|
| |

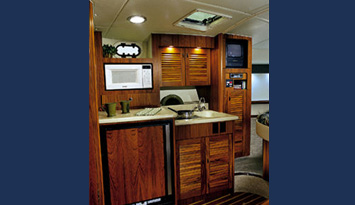

Galley |
| |
|
Complete galley with wheat
colored Corian® counter top
Fountainhead® sink with pressure water system (hot and
cold water)
One-burner electric stove
Microwave
AC/DC refrigerator and freezer
Storage cabinets
|
| |

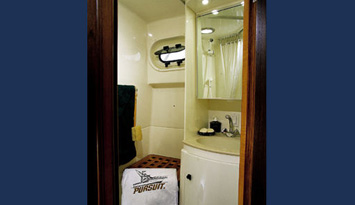

Head |
| |
|
Electric Vacu-Flush® head
system with 30-gallon holding tank
Full fiberglass head/shower with sump pump and shower curtain
Sink w/hot & cold pressure water system w/vanity storage
Port light for ventilation
110V outlet GFI protected
Towel racks
In-laid Corian® vanity
Vanity mirrors
|
| |
Fishing
|
| |
|
Four Lee's® rod holders
Raw water washdown pump
Fresh water washdown pump
Insulated transom fish box with overboard drain
In floor fishbox / storage with macerator pump out

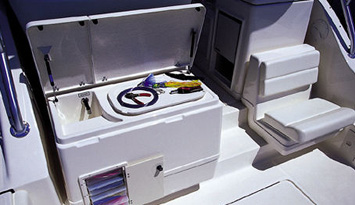

Prep center sink and cutting board with five-drawer tackle
locker and insulated well
Insulated live bait circulating system
Five drawer tackle locker, port seat locker
Three-drawer tackle locker, starboard seat locker
|
| |
Instrumentation, Equipment
and Safety
|
| |
|
Pursuit custom master circuit
breaker switch panel for 12V and 110V
Polarity indicator
One 30-amp 50' dockside power cord with adapter
Heavy duty dual battery system (five gell cell) including switches
Hydraulic steering system with 16" cast custom aluminum
wheel
High speed bronze axe head rudders and struts
Aquamet® 22, 11⁄2" prop shafts
Nibral bronze propellers
Bonding system with transom and shaft zincs
Medallion gauges including:
- rudder indicator
- transmission pressure gauge (diesel only)
- volt meters
- fuel gauges
- temperature gauges
- hour meters
- oil pressure gauges
- dual engine tachometer
Audible engine alarms
Deluxe Ritchie® compass
Engine room light
White gelcoat painted bilge
PSS water cooled shaft logs
Racor® fuel filters w/water seps
Fresh water cooling
Morse® engine controls
Flare kit
Two-stage lift mufflers
FE-241 fire extinguisher system, automatic
Engine room insulation/noise abatement material
Electric engine hatch lifting system
Hot water heater (6 gallon) with exchanger
Fresh water tank, 60 gallon
Cockpit courtesy lights
Two bilge blowers
Horn
Two manual/automatic and one automatic bilge pump
Two fire extinguishers, hand held
One 40-amp battery charger
U.S.C.G. and International approved lighting
U.S.C.G. and B.I.A. ventilation standard
NMMA Yacht certification
|
| |
Coast Guard:
|
| |
|
Pursuit Life Vest (6)
Six 25' docking lines (5/8")
|
|
|
| |
|
|
| |
Boat w/Engines (twin):
|
| |
|
Crusader 8.1(375 hp) (twin)
Volvo 63P (370hp) (twin)
|
| |
Generator:
|
| |
|
Westerbeke (7.0 KW) Gas
Westerbeke (5.0 KW) Diesel
|
| |
Hull Group:
|
| |
|
Anti-fouling bottom paint, black
Swim platform w/built in ladder
Pursuit Fighting Lady Yellow hull
Pursuit Oceana Blue hull
Cockpit carpet (2 piece - black)
|
| |
Mechanical systems:
|
| |
|
Wire only for windlass
Rode anchor windlass system
Propellers, extra pair, gas
Propellers, extra pair, diesel
Shaft, extra, gas
Shaft, extra, diesel
Trolling valves (diesel only)
Oil changing system (Cummins only)
|
| |
Deluxe/Comfort Group:
|
| |
|
Air conditioning/reverse
cycle (12,000 BTU) and includes 2nd 30-amp shore
cord
6 disc changer and subwoofer
TV/Phone inlet and cabin outlets
Color 9" TV/VCR
TV antenna
Y-valve with waste macerator
Cockpit ice maker
Dockside water connection
Cockpit shower
Washdown - fresh water anchor locker
Washdown - raw water anchor locker
|
| Midnight Lights Fabric |
N/C |
| Meridian Fabric |
N/C |
| Dune Fabric |
N/C |
| Ocean Fabric |
N/C |
| Leather Fabric |
|
| |
|
|
| |
Electrical Group: |
| |
|
Engine synchronizer (N/A
w/ crusader 8.1)
|
| |
Sportfish Group:
|
| |
|
Outriggers, Rupp 23'
Outriggers, Rupp 26'
|
| |
Weather Group:
|
| |
|
Bimini Top with side enclosures
and clear connector
Hardtop with spreader lights, side enclosures, and clear connector
3-Piece Drop Curtain
Shipping cradle
|
| |
Colors:
|
| |
|
| Custom Bootline |
|
| Countertops: green accent |
N/C |
| Countertops: blue accent |
N/C |
| Helm color: Gray (standard) |
N/C |
| Helm color: White |
N/C |
|
| |
PACKAGES:
|
| |
|
| A: Fishing |
N/C |
Bait / Tackle Storage:(starboard
side)
Drawer storage for tackle
Baitwell Unit: (port side)
Sink with fresh water spray nozzle and bait prep area
Baitwell with supply / circulation plumbing and activity
light. Cutting board / splash lid on baitwell for bait
prep or work area.
Baitwell Unit: (port side)Transom:Fish box
Transom:
Fish box standard w/package "A"
|
|
| Great Lakes transom w/fold-down
seat |
N/C |
|
| |
|
| B: Fishing/Cruising |
N/C |
Aft facing upholstered seat, starboard
, 27" wide
Baitwell unit: (port side)
Sink with fresh water spray nozzle and bait prep area.
Baitwell with supply / circulation plumbing and activity
light.Cutting board / splash lid on baitwell for bait
prep or work area. |
|
|
| |
|
| C: Cruising |
N/C |
Aft facing upholstered seat, starboard
, 27" wide
Aft facing upholstered seat, port , 40" wide
Transom:
Great Lakes transom w/fold-down seat(forward facing) |
|
|
