Fuel System:
|
| |
|
(2) 225
gallon tanks
|
| |
Ventilation System:
|
| |
|
(2) Pursuit style Plenum
Deck Side Vent
|
| |
Freshwater System:
|
| |
|
110 Gallon freshwater tank
Custom S2 dual Flojet® 8.0 gpm pump assembly
11 gallon hot water heater
|
| |
Waste System:
|
| |
|
Sealand® vacuum generator
head system
40 Gallon holding tank
|
| |
Steering System:
|
| |
|
Teleflex® hydraulic steering
Rudder position sender
(2) Rudders and steering geometry
|
| |
Trim Tab System:
|
| |
|
Bennett Marine® 12V
hydraulic system
|
| |
Engine Controls:
|
| |
|
Teleflex® CH5600 chrome
plated zinc finished throttle controls and SS handles
w/ Pursuit Gold Control Knobs
Stainless Steel Premium 3300 Teleflex® control cables
|
| |
Driveline System:
|
| |
|
11.5° Shaft Angle
Tunnel
Shaft Log
PSS® dripless shaft seal
|
| |
Electric Engine Hatch
Lift:
|
| |
|
Electric actuators
|
| |

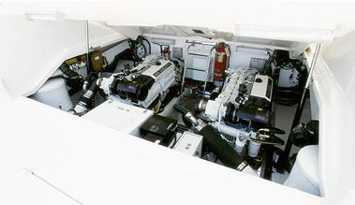

Engine Room Insulation:
|
| |
|
EAR Specialty® foam insulation
|
| |
Safety:
|
| |
|
Manual/Automatic fire extinguisher
(2) Manual dry chemical fire extinguishers
CO2 Monitor
Safety/First Aid Kit
Certification/Standard Compliance
NMMA/ABYC
USCG Certification
CE
|
| |
General Mechanical Systems:
|
| |
|
12V engine room lights -
4 fluorescent
|
| |
General Electrical Systems:
|
| |
|
12 VDC System
120 VAC System
Two Bank Battery Charger
Charles® Battery Charger
(2) High I/P 160 amp alternators and external regulators
Galvanic isolator
|
| |
Master AC/DC Panel:
|
| |
|
Circuit Breakers - Switch
Style
Located under steps on main bulkhead on centerline
|
| |
Main Control/Display
Panel:
|
| |
|
AC and DC Monitoring
Generator and Blower controls
|
| |

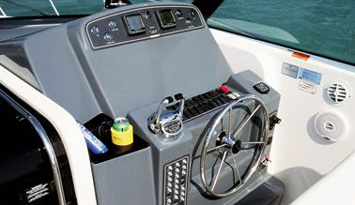

Helm Instrument Panel:
|
| |
|
VDO® Instrument Package
Engine Oil Pressure (Port & Starboard)
Engine Oil Temperature (Port & Starboard)
Fuel Level (Port & Starboard)
Engine Battery Voltmeter (Port & Starboard)
Rudder Position Indicator
Transmission Pressure (Port & Starboard)
12 V DC Red Warning Lights
Aft Bilge Pump
Mid Bilge Pump
|
| |
12V Accessory Outlet
at Helm:
|
| |
Ignition Panel:
|
| |
|
On/Off Ignition Keys (Port & Starboard)
Battery Parallel Push Button
|
| |
Helm Switch Panels:
Helm Circuit Breaker Panel:
|
| |
|
Shore Power
One 120V 30 amp 65' shore power cord with adapter
One 240V 50 amp 65' short chord
|
| |
Bonding & Grounding:
|
| |
|
Hardware is bonder into the
Main DC Return (excluding trim tabs)
Trim tabs - external zinc sacrifice
Shafts - external zinc sacrifice
|
| |
Stereo:
|
| |
|
AM/FM/Cassette stereo with
four speakers - 2 interior and 2 cockpit
Remote Control
|
STANDARD INTERIOR LIST
|
| |

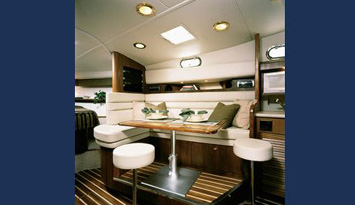

Dinette:
|
| |
|
Recessed AC/DC monitor panel
with smoked plexiglass door
" L" shape style seating
Two storable stools for additional dinette seating
Solid Teak with Brass Fish table
Hi-lo table base to convert table into berth for (2)
Storage under seats
Rod storage under cabin sole
|
| |

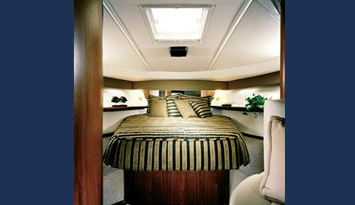

V-Berth:
|
| |
|
Pedestal type berth on top
of riser
Storage below
Port side hanging locker w/closet rod for hangers and aromatic
cedar back
Two (2) half-shade reading lights
Hull side shelves port and starboard
Open berth to salon - closed with curtain for privacy as needed
Fabric wrapped light valance at sheer
Mirror on anchor bulkhead
Quilt, Pillows (6) and shams for V-berth unit
Privacy curtain enclosure
Cable TV/phone outlet
|
| |

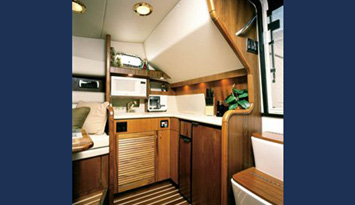

Galley:
|
| |
|
Refrigerator/freezer
Microwave
Two burner electric stove
Corian® sink with a Corian® cover
Coffee maker
Corian® countertops
Recessed stove with Corian® cover and cut-off switch for
stove
Upper cabinet - open pocket storage
Cabinet storage under counter top
Cutting board on bottom side of sink cover
GFI Outlets
Fiberglass companionway steps with hardwood treads and stowage
underneath
Coriansreg; Lid Storage
|
| |

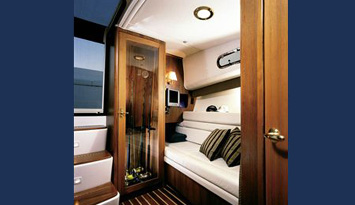

Settee:
|
| |
|
Vertical Rod Storage (Lighted/Clear
Tempered Glass Door)
6'4" Lounge with pullman berth for additional sleeping
Storage below lounge
Curtain enclosure for privacy
1/2" Shade Reading Light
Fire Extinguisher
|
| |

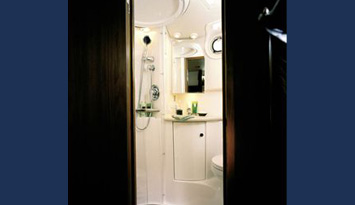

Head:
|
| |
|
Vacuflush® toilet
Corian® vanity-top
Corian® sink bowl
Lower vanity storage
Upper medicine cabinet
Viplex circular shower door
Teak floor grate - in shower
Teak veneered Lumbercore® door
GFI Outlets
Ventilation blower with switch
Air conditioning supplied from salon
|
| |
Surface Treatments:
|
| |
|
Solid teak and holly cabin
floor
Teak veneered bulkheads
Carpeted v-berth riser top, riser face and hull side
Solid teak companionway step treads
Vanilla vinyl
|
STANDARD EXTERIOR LIST
|
| |
Hull:
|
| |
|
Premium gel coat
Blister resistent vinyl ester resin skin coat below waterline
Hand-laid knit fiberglass
Balsa cored topsides
Solid fiberglass bottom
Gel coat boot stripe
|
| |
Deck:
|
| |
|
Premium gel coat
Hand-laid knit fiberglass
Balsa core
|
| |
Structure:
|
| |
|
Ply-Foam Stringer System
Plywood Bulkheads
|
| |
Navigation Lights:
|
| |
|
Running lights
Anchor light
Transom light
|
| |
Ground Tackle:
|
| |
|
Stainless steel two-piece
bow roller
Hawse pipe
10" Cleat
|
| |
Windshield:
|
| |
|
Custom Carved Windshield
Deck mounted windshield wipers
Hand-laid fiberglass frame
|
| |
Deck Hatches and Port
Lights:
|
| |
|
(3) Bomar cast aluminum deck
hatches
(4) Stainless steel opening port lights
|
| |
Deck Hardware:
|
| |
|
Custom stainless steel bow
rail
12" Chrome plated cast bronze cleats for bow lines & stern
lines
6" Chrome plated cast bronze cleats for fenders
Chrome plated cast bronze transom corner hawsers
Two-trumpet pneumatic horn when hardtop is ordered
Flush mount horn installed in desk without hardtop
Fuel fill, water fill, waste removal
(4) Rod holders in gunnel
Aluminum plate in deck for fighting chair installation
Large self bailing scuppers
Cockpit Raw Water Washdown
Cockpit Fresh Water Washdown
Flush floor box hatches, fuel inspection hatch, engine day
hatch, anchor hatch
Fire Extinguisher
Cockpit courtesy lighting
Viplex Companionway Door
|
| |
Large & Small Floor
Tanks Insulated:
|
| |
|
12V-macerator pump included
Foamed insulation for both tanks
|
| |
Standard Cockpit Furniture:
|
| |
|
Oversized helm seat; electrically
actuated fore and aft
Sink basin w/faucet, cutting board and acrylic cup holder
Cavity storage under helm seat
Cavity storage under sink basin
Cavity storage aft of sink with padded seat on lid

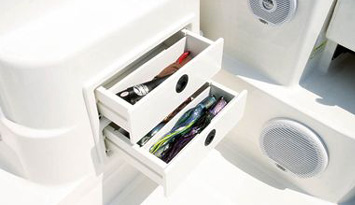

Storage drawers/tackle storage under aft storage box

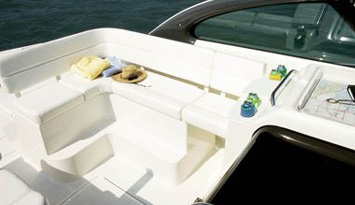

Port side L-lounge
Large cavity storage forward

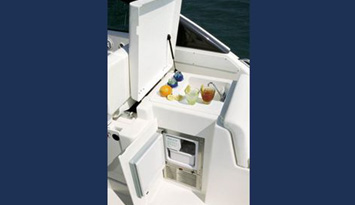

Cooler with drain in aft leg
Aft Facing Seat to Port side aft of L-Lounge
Upholstered Coaming Bolsters
Rod Storage under coamings to accommodate Rods/Gaffs/Boat Tools
|
| |

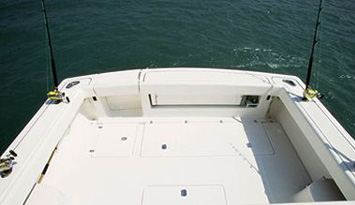

Cockpit/Bridgedeck Details:
|
| |
|
Fuel tank inspection hatch
Anchor locker hatch
Transom door with tuna gate
Non-skid surface: Cockpit sole, side and fore decks, covering
boards
Textured surface on cabin top
Fiberglass "tilt-away" helm console w/ 5" Ritchie
compass
Recessed drink holder at helm seat
Shroud with chart flat and (4) drink holders
Molded-in hull-side engine vents
Molder-in bow pulpit
|
|
|
| |
|
Effective Date: August 01, 2003
|
| |
Mechanical/Electrical
List:
|
| |
Engine Options:
|
| |
|
(2) CAT 3126B 450HP
(2) Volvo 75P 480HP
(2) Cummins® 6CTA 450HP
(2) Cummins® 6CTA 480HP
|
| |
Running Gear:
|
| |
|
Spare Props (pair)
Spare Shaft
|
| |
Electronic Controls:
|
| |
|
Glendinning®
Volvo®
Glendinning® Model 1750 Engine Synchronizer (for Cummins® Engine
450HP only, Syncronizer standard with Volvo® Electronic
Controls)
|
| |
Trolling Valves:
|
| |
|
Cummins and Volvo Options
|
| |
Oil Changer Options:
|
| |
|
Reverso 5 Port unit
|
| |
Generator Option:
|
| |
|
Onan® 9 Kw - Diesel (w/a sound shield)
|
| |
Air Conditioner (120V
60Hz):
|
| |
|
Marine Air Systems®
|
| |
Helm Console - Cool
Air:
|
| |
|
Requires Air Conditioning Option
|
| |
Macerator Option:
|
| |
|
Sealand® macerator
|
| |
Mechanical Group:
|
| |
|
Auto Windless System:RC 800
Spotlight Wiring (for bow pulpit)
Remote Spotlight: ACR model RCL50
Remote Spotlight: ACR model RCL100
Anchor locker raw water washdown
Anchor locker fresh water washdown
Glendinning® Shore Cord Recoil Unit
|
INTERIOR/EXTERIOR LIST
|
| |
Comfort Group:
|
| |
|
| Replacement cabinetry for vertical
rod storage in settee |
N/C |
Central vacuum system
TV Antenna
13" flat screen & 6" TV w/ DVD
TV/Phone inlet & Cabin Outlet
AM/FM/Cassette stereo with 6-disc CD changer; 2 cabin
speakers, 4 cockpit speakers, cockpit subwoofer, and
4-channel amp |
|
|
| |
Optional Fabrics:
|
| |
|
| Summer Wind (neutral) |
N/C |
| Out of the Blue (blue) |
N/C |
| 24 Karat (gold) |
N/C |
| Elite (black & gold) |
N/C |
| Leather interior seating |
|
|
| |
Corian® Counter
Tops:
|
| |
|
| Aurora Beige (countertop) |
N/C |
| Emerald Green (countertop) |
N/C |
| Oceanic Blue (countertop) |
N/C |
| Helm Color: Gray standard |
N/C |
| Helm Color: White |
N/C |
|
| |
Fishing Group:
|
| |
|

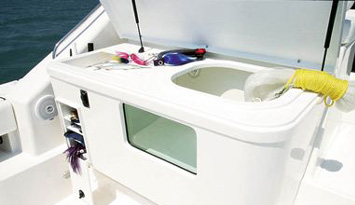

Bait Prep Center to Port
side aft of L-lounge w/50 gallon livewell, sink, rigging
board, and tackle storage
Rupp 26 Outriggers
Starboard side bair freezer which replaces standard aft storage
box (cushioned seat to remain on lid)
|
| |
Cockpit Furniture:
|
| |
|

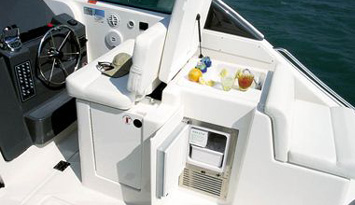

Helm seat unit, ice maker
under sink
Transom Aft Fold-Down Seat
Helm Seat Aft Storage
|
| |
Exterior Group:
|
| |
|
Cockpit Carpit upper floor
Custom Boot-line
Anti-fouling Paint - black
Yellow or Light Blue Hull Color
Exterior swim platform
Cockpit Shower
|
| |
Weather Group:
|
| |
|
Bmini Top & side
curtain (Ivory)
3-piece drop curtain (Ivory)
Hardtop with front & side enclosures (ivory)
|
|
| Canvas color (black navy blue,
or forest green) |
N/C |
|
| |
Shipping Cradle:
|
| |
|
Shipping Cradle for International
Delivery
|
| |
|
|
