C 260
C 260



The C 260 features an extensive list of standard equipment consistent with the award-winning product Pursuit has introduced in recent years.

Yacht-caliber fit and finish, timeless styling and modern appointments set the stage for a new generation of luxurious Pursuit Center Consoles.

All molded hatches throughout the boat are finished inside and out. Interior highlights include bow storage port and starboard, an optional thru-hull windlass system in the bow, forward opening head access and a custom surfboard styled, vacuum-infused hardtop.



GALLERY
SPECIFICATIONS



L.O.A.
25’ 10” (7.87 m)
Beam
8' 9" (2.67 m)
Hull Draft
(motors up)
(motors down)

1’ 8” (0.31 m)
2’ 9” (0.60 m)
*Clearance w/Hardtop
(from waterline)

8’ 0” (2.40m)
Approx. Dry Weight
(twin F200 engines)

 6,130 lbs. (2,781 kg)
**Fuel Capacity
139 U.S. gallons (526 L)
Fresh Water Capacity
18.5 U.S. gallons (70 L)
Livewell Capacity
19 U.S. gallons (72 L)
Fishbox Capacity
31 U.S. gallons (117 L)
Max. Horsepower
400 hp (298 kw)
Deadrise
21°

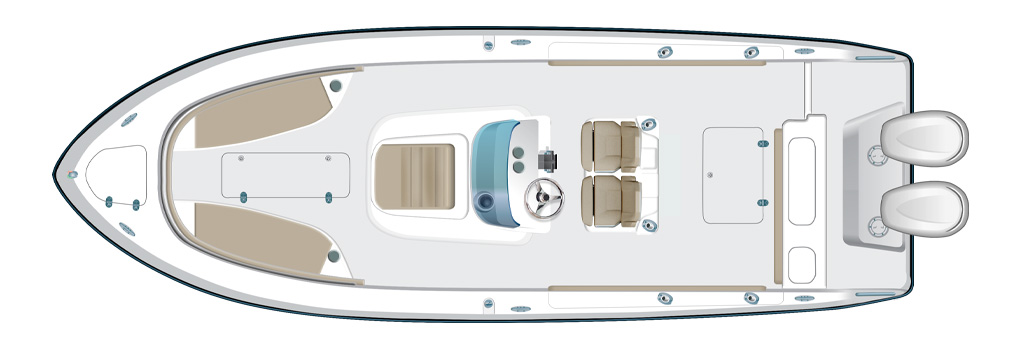

Plan View



*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.





STANDARDS



Effective date: August 1, 2018

HULL FEATURES

  • Pursuit® Protection Plan:
    5 Year Hull and Deck Structural Warranty
    5 Year Blister Free Warranty
    2 Year Limited Warrant
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 5/8" 316L Stainless Steel
  • Stern Eyes (2), 5/8" 316L Stainless Steel
  • Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform
  • Anchor Locker, Self-Draining
  • Horn, Electric, with Oval Stainless Steel Cover
  • Dedicated Transducer Location

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened
  • Rub Rail: High Density PVC with Vinyl Insert
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid
  • Cleats, 316 Stainless Steel, 8" Pop Up (2) Stern, (2) Spring and (2) Bow
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Positive Catch
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Bow Grab Rails, 316L Stainless Steel (port & starboard)
  • Transom Grab Rail, 316L Stainless Steel (starboard)
  • Tilt Helm
  • Navigation Lights, LED, 2 mile

COCKPIT FEATURES

  • Drink Holders, 316L Stainless Steel, (2) Bow, (2) Helm and (2) in Gunwale
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • LED Cockpit Accent Lights
  • Forward Bow Seating Cushions with Bolsters and Folding Backrest
  • Molded split bow seating with cushions and storage below
  • Folding Transom Seat with Patented Adjusting Backrest
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • Leaning Post Cover

FISHING FEATURES

  • Rod Holders (6), Stainless Steel, (4) in Gunwale and (2) in Helm Seat Module
  • Lighted Oceana Blue 19 Gallon Recirculating Insulated Live Well with Lid
  • Under Gunwale Rod Storage (port and starboard)
  • Fish Box, in-transom (31 gallon) Insulated, Fiberglass with Drain
  • Tackle Drawer/Storage Under Sink
  • Dedicated Cooler Storage location
  • Bait Prep Corian® Cutting Board
  • Aluminum Reinforcement Plates for Downrigger Installation, Aft Gunwale (port and starboard)

CONSOLE & HEAD

  • Two Piece Fiberglass Door with Gasket and 316 Stainless Steel Locking Latch
  • Molded Fiberglass Interior
  • Console Entry Steps
  • Manual Porcelain (freshwater) Head with 13 Gallon Holding Tank and 316L Stainless
  • Steel Pump-out Fitting
  • Sink with Freshwater Faucet
  • Integrally Switched 12V Overhead Light
  • Toilet Tissue Holder
  • Fire Extinguisher

HELM

  • Molded Console with Fixed Helm, Integrated Footrest and Forward Facing Seat
  • Hydraulic Steering Pump
  • 316L Stainless Steel Steering Wheel on Tilt Helm
  • 12V Panel with Illuminated Carling® Rocker Switches
  • 316L Stainless Steel Helm Drink Holders (2)
  • Compass
  • Trim Tab Control Panel and Indicator
  • One 12V Outlet (1) and Dual USB Charger (1)
  • Helm Fire Extinguisher
  • Molded Fiberglass Leaning Post: Two Seats with Fold-down Arm Rests and Bolsters
  • Yamaha® Command Link Plus Display
  • Dash/Instrument Cover

HARDTOP AND WINDSHIELD

  • Molded Fiberglass Hardtop
  • Overhead Glove Box
  • Powder Coated Structural Hardtop Support
  • Four (4) Rod Holders
  • Combination Anchor / Stern LED All-around Navigation Light
  • Two (2) Tri Color LED Lights
  • Aft Facing LED Spreader Light
  • Acrylic Windshield

ELECTRICAL

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, One-Piece Electrical Harness with Water Proof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
  • Two Battery System: Engine (1) and House (1)
  • One Grounding Bus Bar
  • Electronics Fuse Block

MECHANICAL

  • Molded Interior White Gel Coat
  • Molded Hatch with Gasket and Stainless Steel Gas Spring
  • Two (2) 1500 GPH Bilge Pump with Electronic Switches and Stainless Steel Clad Composite Thru Hull Fittings
  • Fresh Water Pump with Filter
  • Raw Water / Livewell Pump with Sea Strainer, Sea Cock and Thru Hull Fitting

FUEL SYSTEMS

  • EPA Compliant Lined 139 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valve, Digital Level Indicator and Deck Fuel Fill Plate
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEMS

  • 18.5 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Cockpit Shower





Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.



OPTIONS

BOAT w/ENGINES

NATIONALLY ADVERTISED PROMOTION
Twin Yamaha® Digital F150
Upgrade to Twin Yamaha® Digital F200 Teleflex® Power Steering Twin Fresh White Painted Engine w/ Yamaha® Gray Lower Unit and Platinum Graphics

COLOR SELECTIONS

Hull Color
Titanium, Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue
Helm Color
Titanium (Standard), Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue
Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray

MECHANICAL SYSTEMS

Windlass Anchor System w/10' Chain and 150' Rode (cannot be installed after production) Stainless Steel Delta Anchor (requires windlass opt) All Color Sea Blaze Quattro Spectrum Underwater Lights (3) Hard Rub Rail w/SS Cap

COMFORT & CONVENIENCE

Fiberglass Bow Table Sunpad Poly Filler w/Cushion Aft Fold-down Seat w/Backrest Console SS Portlight w/Screen

WEATHER

Sunbrella® Canvas color - Black, Tweed, Cadet Gray, or Navy Sunbrella® Side Curtains (Connect to Gunwale) Stamoid® Side Curtains (Connect to Gunwale) Drop Curtain - Sunbrella® Drop Curtain - Stamoid® (white) Engine Covers Twin - Sunbrella®

ELECTRONICS

JL Audio Stereo AM/FM/USB Bluetooth w/4 speakers Garmin Electronics Package
Includes: GPSMAP 7612XSV, Airmar B117 600 watt Transducer, NMEA 2000 Starter Kit, VHF 300, VHF Antenna Galaxy 5225XP, Custom Pursuit Dash Panel
