S 368
S 368



The S 368 Sport provides a stunning exterior profile with industry-leading features.

If you’re searching for a state-of-the art luxury center console, meet the newest member of our growing family. The Pursuit S 368 will lure you in with its privileged bloodline and superior ample amenities. That’s because it carries on the unrivaled sporting prowess of its elders, the S 408 and the S 328.

The console includes such modern amenities as a fully enclosed head, convertible sofa berth, large storage areas and some small kitchen amenities that would let you stay aboard if you desire.

On deck, distinct social zones in the bow area, at the helm and aft in the cockpit give plenty of space for an entire family and friends to find their own space. If it’s not socializing but fishing you’re after, all the amenities are included.



VIDEO GALLERY
GALLERY
SPECIFICATIONS



L.O.A.
37’ 11” (11.56 m)
Beam
12' 0" (3.66 m)
Hull Draft
(motors up)
(motors down)

2’ 3” (0.69 m)
3’ 5” (1.04 m)
*Clearance w/Hardtop
(from waterline)

8’ 10” (2.69m)
Approx. Dry Weight
(triple F300 engines)

16,700 lbs. (7,575 kg)
**Fuel Capacity
425 U.S. gallons (1,609 L)
Diesel Generator Tank
20 U.S. gallons (76 L)
Fresh water Capacity
45 U.S. gallons (170 L)
Holding Tank Capacity
20 U.S. gallons (76 L)
Livewell Capacity
28 U.S. gallons (106 L)
Fishbox Capacity
2 @ 45 U.S. gallons
(2 @ 170 L)
Max. Horsepower
1050 hp (783 kw)
Deadrise
20°

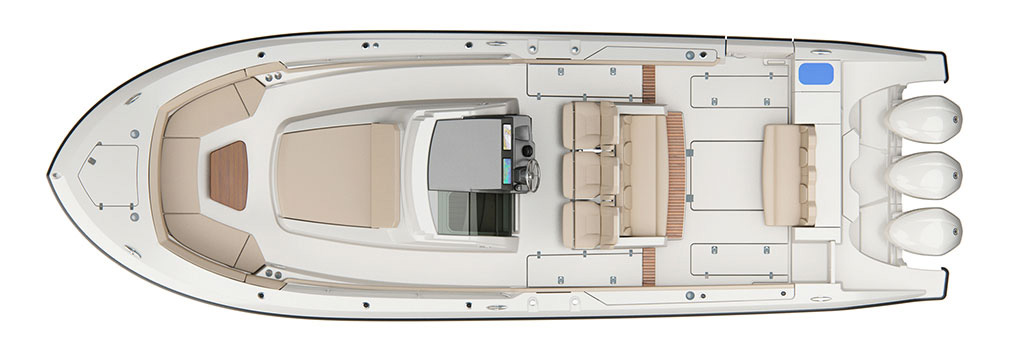

Plan View



*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.





STANDARDS



Effective date: August 1, 2018

HULL Features

  • Pursuit® Protection Plan:
    5-year hull/deck structural warranty
    5-year blister-free warranty
    2-year limited warranty
  • Pursuit Fresh White Gelcoat
  • Yamaha® white paint on engines
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 5/8" 316L Stainless Steel
  • Integrated Transom Platform Extensions Outboard of Engines
  • Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform
  • Anchor System, Integrally Molded Thru-Stem
  • Bow Thruster, 3.0 HP (2.2 kW) with Group 31 AGM Battery, Switch and Fuse
  • Dedicated Transducer Location
  • Forward Hull Compartmentation with one (1) 1100 GPH Bilge Pump with Automatic Float Switch

DECK FEATURES

  • Hull and Deck Joint: Mechanically Fastened and Includes Aluminum Backing Plates At Cleat Locations
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Transom Cap, 316L Stainless Steel
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder, 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle, 200' Rode (1/2" 8 Plait including 10' of ¼" G4 Chain)
  • Cleats, 316 Stainless Steel, 10" Pop Up (2) Stern, (2) Spring and (2) Bow
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Self-Draining Cockpit with Integrated Scupper Drains and Stainless Steel Drain Covers
  • Bow Grab Rails, 316L Stainless Steel (port & starboard)
  • Transom Grab Rails, 316L Stainless Steel, (port & starboard)
  • Molded Non-Skid Steps in Splashwell for Athwartship Access
  • Navigation Lights, LED, 2 mile

COCKPIT FEATURES

  • Bow Seating. Ability to Sit Facing Forward, Clear Passage Forward (Removable Jumpseat)
  • Insulated Storage Under Bow Seating Area Port and Starboard
  • Forward Table (High Gloss) with removable bases for dining, designated storage
  • Bow Sunpad Chaise for two (2) with Fold-Down Armrests and Drink Holders
  • Storage Under Bow Sunpad Chaise with Consideration for Common Boating Equipment. Should be able to accommodate a combination of: flexible rod/pole holders, two (2) 5-gallon pails, four (4) scuba tanks, Brownie's 3rd Lung equipment, cooler 52 qt, and fenders
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Pursuit Cockpit Entertainment System: JL Media Master 12V Bluetooth® Compatible Stereo System, Premium JL Audio Speakers eight (8) Total, six (6) in Exterior and two (2) Subwoofers), Amplifier and Remote at Helm
  • Molded Entertainment Center with Molded Sink, Hot/Cold Mixing Faucet, Dedicated Storage, 120V Outlet with GFI Protection and Hinged Fiberglass Lids/Doors
  • Folding Transom Seat with Patented Adjusting Backrest
  • Helm Seat Box Content:
    Frig 2.3 cub ft with pull-out drawer (Isotherm) (port side), DC Panel and Battery Switch access under helm seat (Starboard side), Large storage compartment (trunk) under aft facing mezzanine seat, Electric Grill 120V 60 cycle in Pull-out Drawer
  • 316L Stainless Steel Drink Holders – Bridge, Cockpit and Helm
  • Cockpit Machinery Access Hatch
  • Fresh Water Cockpit Shower with Hot/Cold Mixing Valve and Pull out Sprayer
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • Full Cockpit Breathable Coaming Bolsters with Dry Fast Foam
  • Inward Opening Side Boarding Door Starboard Side with Removable/Storable Ladder for Water Play
  • Seven (7) LED Cockpit Courtesy Lights: Two (2) Lights at Bridge Deck, Three (3)Lights at Bow Seating and Walkways, and Two (2) Lights at Cockpit Steps
  • Cockpit Fire Extinguisher Under Mezz Seat
  • Dockside Fresh Water Inlet with Pressure Regulator
  • Aft Mezz Seat Cover (white Weathermax®)
  • Helm Seat Cover (white Weathermax®)
  • Forward Bow Seating Cover (white Weathermax®)
  • Forward Sunpad Cover (white Weathermax®)

FISH FEATURES

  • Rod Holders (8), Stainless Steel, in Gunwale
  • Lighted Oceana Blue 28 Gallon Recirculating Insulated Livewell with Fiberglass Lid and Acrylic Window
  • Under Gunwale Rod Storage (starboard)
  • Fish Boxes, (45 gallon) Insulated, Diaphragm Pumps with Overboard Discharge (port & starboard)
  • Vertical Rod Holders on Transom (2) and Hardtop Supports Aft (2)
  • Lockable Rod Storage in Cabin
  • Bait Prep Station: Sink with Corian® Cutting Board, Pull-out Fresh Water Sprayer and Sliding Tackle Drawers
  • Aluminum Reinforcement Plates and Wiring for Downrigger Installation, Aft Gunwale (port and starboard)

HARDTOP & WINDSHIELD

  • Integrated Fiberglass Hardtop with Visor
  • White Hardtop Supports with Two (2) Rod holders and Integrated Ladder Rungs for Access to Hardtop
  • Tempered Windshield Glass, Tempered Side Glass with Fiberglass Frame and Electrically Actuated Center Vent Window
  • Windshield Wiper with Fresh Water Washer
  • Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings
  • Four (4) Tri Color LED Lights
  • Two (2) Aft Facing Spreader Lights, one (1) Forward Facing Spreader Light
  • Integrated Stereo Speakers (4)
  • Integrated Life Jacket Storage
  • Overhead Displays, AutoPilot (Optional) Display, Yamaha Display
  • Fiberglass Hardtop with Dedicated Radar, Antenna and Outrigger Locations
  • Horn, Electric, Twin Trumpet

HELM

  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Integrated Footrest and Safety Lanyard
  • Elevated Standing Platform Folds Down From Seat Box
  • Molded Acrylic Access Door with Secondary Framed Screen Door and 316L Stainless Steel Locking Latch
  • 12V Panel with Illuminated Carling® Rocker Switches
  • 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
  • Top Load Glovebox (Starboard side), (contains USB charging port)
  • Pursuit Custom Triple Captain’s Seats with Folding Armrests, three (3) Sculpted Flip-Up Bolsters and Lumbar Support, one (1) medium on ramping actuator, two (2) small stationary
  • Single Windshield Wiper with Washer Control
  • Compass
  • Bow Thruster Joy Stick Control
  • Port Fold-down Footrest
  • Trim Tab Control Panel and Indicator
  • Waterproof Stereo Remote with Full Function Display
  • 316L Stainless Steel Helm Drink Holders (2)
  • Two 12V Outlets (2) and Dual USB Charger (1)
  • Helm Fire Extinguisher
  • Yamaha® Command Link Plus Display (Overhead)
  • Dash/Instrument Cover (White Weathermax®)

CABIN

  • Full Fiberglass Cabin Deck Liner with Sound Damping Insulation
  • Full Fiberglass Hull Liner with Sound Damping Insulation
  • Cabin Entry Steps with Custom Handrail and Wood Treads
  • Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access and Drainage
  • Forward Berth with 4” Foam Cushions and Storage Beneath
  • Port and Starboard Forward Outboard Storage
  • 316L Stainless Steel Opening Port Lights two (2) with Screen
  • 12V Outlet one (1) and Dual USB Charger one (1)
  • Companionway 2-Switch Panel:
    Two (2) Accent Floor Lights
    Two (2) Overhead LED at Companionway four (4) Overhead LED at berth
  • AC Panel with Strip Light
  • Storage in Front of Berth
  • JL Audio Stereo Speakers (2)
  • 120V Microwave Oven
  • CO Monitor
  • Fire Extinguisher

HEAD (STARBOARD SIDE)

  • Fiberglass Private Head Compartment with Non-Skid Pattern Area
  • Corian® Countertop with Sink, Hot/Cold Faucet and Storage Cabinet Below
  • Vacuum Flush Marine Head with 20 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
  • Upper Vanity Mirrors
  • Toilet Tissue Holder
  • Grab Rail/Towel Rack
  • Shower Sump Box Drain with Automatic Discharge Pump
  • Shower with Hot/Cold Mixing Valve, Shower Wand (Pull out from Faucet)
  • 316L Stainless Steel Opening Port Light with Screen
  • Two-Switch Panel with two (2) Overhead LED Lights, one (1) LED Floor Accent Light
  • One (1) 120V Outlet with GFI Protection
  • Shower Curtain

ELECTRICAL SYSTEM

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, Electrical Harness with Water Proof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
  • Six Battery System: Port Engine (1), Center Engine (1), Starboard Engine (1), Bow Thruster (1) (AGM) and House (2) (AGM)
  • Single 120V 30 Amp 60 Cycle Dockside Power Connection
  • One (1) 120V 30 Amp 50’ Dockside Power Cord
  • Isolation Transformer
  • Pursuit Custom 12V and 120V Interior MDP Switch Panel for Cabin Interior Circuits
  • Four (4) 120V Outlets with GFI Protection
  • Four (4) 12V Outlets and two (2) Dual USB Chargers
  • One (1) 40 Amp Battery Charger for House and Bow Thruster Batteries
  • One (1) 20 Amp Battery Charger for Engine Batteries
  • One Grounding Bus Bar
  • Electronics Fuse Block

MECHANICAL SPACE

  • Molded Interior White Gel Coat
  • Molded Hatch with Gasket and Stainless Steel Gas Spring
  • Molded Bilge Sump Area
  • Aft Mechanical Space Access Step
  • One Low Profile 900 GPH Bilge Pump with Integrated Float Switch, One 1500 GPH Bilge Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
  • Fresh Water Pump with Filter
  • Raw Water Pump with Bronze Sea Strainer, Sea Cock and Thru Hull Fitting
  • Livewell Cyclone Pump with Bronze Sea Strainer
  • Dedicated Fishbox Diaphragm Evacuation Pumps
  • Teleflex Power Steering Pump

FUEL SYSTEM

  • EPA Compliant Lined 425 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator, and Deck Fuel Fill Plates
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Three (3) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEM

  • 45 Gallon Water Tank with Level Indicator and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Pressure Sensing/Variable Speed Pump
  • Fresh Water Distribution Manifold with Dedicated Valves
  • Dockside Fresh Water Inlet with Pressure Regulator
  • 6 Gallon Stainless Steel Water Heater, 240V/60 Cycle
  • Cockpit Shower with Hot/Cold Mixing Valve

GENERATOR

  • 240V/60 Cycle 4.2 kW Fischer Panda® Diesel Generator with Sound Shield and Service Slide
  • EPA Compliant Lined 20 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valves, Digital Level Indicator, Water Separating Fuel Filter and 316L Stainless Steel Deck Fill Plate
  • Fire Suppression System



Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.



COLOR TOOL

Hull Color - Flag Blue

Custom Solid and Effect colors avaiable.

Bootstripe Color - Red/Red

Custom Boot Stripe Color avaiable.

Helm Color - Titanium



OPTIONS

BOAT w/ENGINES

Triple Yamaha® Electronic F300 Triple Yamaha® Electronic F350 Yamaha® Helm Master™ Steering System w/Set Point Yamaha® Helm Master™ Steering System w/Set Point (with Tower Option Only)

COLOR SELECTIONS

Hull Color
Titanium, Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue, Solid, Effect
Helm Color
Titanium (Standard), Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue, Solid, Effect
Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray, Custom

MECHANICAL SYSTEMS

110V/60Hz Cabin Air Conditioning System, 6,000 BTU 110V/60Hz Cockpit Air Conditioning System, 6,000 BTU All Color Sea Blaze X2 Spectrum Underwater lights (4) LED Spotlight w/Remote Control at Helm Bow Tow Eye

COMFORT & CONVENIENCE

Aft Cockpit Table (High Gloss) with Dedicated Storage Attaches to Aft wall of Seatbox for use by Mezz seat

SPORT FISHING

Tower Land Delivery: (Pursuit employee will assist with installation)
Tricolor overhead lighting, Compass, Yamaha controls, Tilt Steering,Trim Tab Control, Ignition switches with safety shutoffs, Bow thruster control, Helm Master Joystick (if selected), Yamaha display, Drink Holders (2 or 3), Speakers (2), Navigation Display (10” or 12”), VHF, Autopilot GHC20, Spotlight (if selected), Stereo remote (controlled through display), Glovebox, 12V outlet and USB outlet, Seating (for 2 or 3)
Hardtop Rocket Launcher (7) Transom Rod Holders (3) Bow Rod Holders (4) Taco Grand Slam 380 Outriggers w/18' Telescoping Poles Rupp Tournament Outriggers (with Tower Option Only) Center Rigger (with Tower Option Only)

ELECTRONICS

Sirius Satellite Radio with Hardtop-Mounted Antenna Garmin® Electronics Package
Includes: GPSMAP 7616XSV Display, GPSMAP 7616 Display, CHIRP B 175M 1KW Transducer, NM 2000 Starter Kit, Pursuit Custom Dash Panel, Yamaha Gateway with Cable, VHF 300, VHF Antenna Galaxy 5225XP
Garmin® Radar Open Array GMR 24 xHD2 Garmin® Reactor Corepack w/Smartpump Auto Pilot Garmin® GHP Reactor Auto Pilot (with Helm Master)

UNDERSIDE HARDTOP COLOR

Gel Color - Titanium, Neptune Gray, Flag Blue, or Gulf Stream Blue Paint Color - Titanium, Neptune Gray, Flag Blue, or Gulf Stream Blue

WEATHER

Makefast Aft Sunshade Mediterranean Sunshade Forward Mediterranean Sunshade Aft 3-Sided Enclosure w/Strataglass - Staimod® 3-Sided Enclosure w/Makrolon - Staimod® Wide-Winged Enclosure - Staimod® Engine cover (triple) - Sunbrella® Sunbrella® Canvas color - Black, Tweed, Cadet Gray, or Navy
