DC 265
DC 265



The award-winning 26 foot dual console sets new levels in design, engineering and performance for this growing segment.

The classic hull was specifically engineered with family fun, casual fishing, cruising and marine sport utility in mind.

Luxurious bow seating, port side forward and rear facing seats along with recessed port and stern seating accommodates the entire family and friends on all your adventures. The DC 265 offers endless possibilities for exploration.



GALLERY
SPECIFICATIONS



L.O.A.
25’ 10” (7.87 m)
Beam
8' 9" (2.67 m)
Hull Draft
(motors up)
(motors down)

1’ 7” (0.48 m)
2’ 10” (0.86 m)
*Clearance w/Hardtop
(from waterline)

7’ 6” (2.29m)
*Clearance w/Windshield
(from waterline)

6’ 2” (1.88m)
Approx. Dry Weight
(twin F200 engines)

6,180 lbs. (2,803 kg)
**Fuel Capacity
139 U.S. gallons (526 L)
Fresh Water Capacity
18.5 U.S. gallons (70 L)
Livewell Capacity
19 U.S. gallons (72 L)
Fishbox Capacity
31 U.S. gallons (117 L)
Max. Horsepower
400 hp (298 kw)
Deadrise
21°

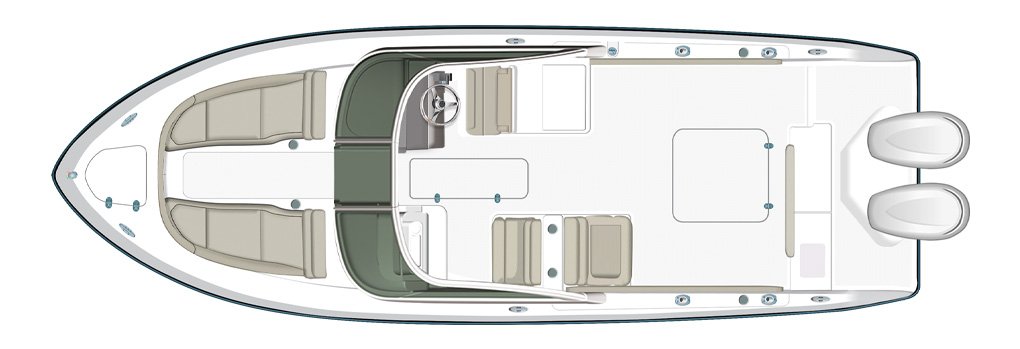

Plan View



*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.





STANDARDS



Effective date: August 1, 2018

HULL FEATURES

  • Pursuit® Protection Plan:
    5 Year Hull and Deck Structural Warranty
    5 Year Blister Free Warranty
    2 Year Limited Warrant
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 1/2" 316L Stainless Steel
  • Stern Eyes (2), 1/2" 316L Stainless Steel
  • Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform
  • Anchor System, Integrally Molded Thru-Stem
  • Horn, Electric, with Oval Stainless Steel Cover
  • Dedicated Transducer Location

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
  • Cleats, 316 Stainless Steel, 8" Pop Up (2) Stern, (2) Spring and (2) Bow
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Transom Grab Rails, 316L Stainless Steel, (port & starboard)
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid including: 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder, 14 lb. Galvanized Plow Style Anchor, Self-Righting Shackle and 150' Rode (1/2" 8 Plait including 10' of ¼" G4 Chain)
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Bow Grab Rails, 316L Stainless Steel (port & starboard)
  • Navigation Lights, LED, 2 mile

COCKPIT FEATURES

  • Molded Fiberglass Windshield Frame with Tempered Glass Windshield and a Center Walk-through Door
  • Drink Holders, 316L Stainless Steel, (2) Bow, (4) Helm/Companion and (2) in Gunwale
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Fiberglass Hardtop with white Powder-coated Aluminum Frame including Front and Side Enclosures
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • Cockpit MIdship Floor Storage
  • LED Cockpit Accent Lights (3)
  • Folding Transom Seat with Patented Adjusting Backrest
  • Folding Seat (portside) Under Gunwale
  • Fixed Forward Facing Companion Seat
  • Aft Facing Cockpit Seat with Insulated Cooler Below
  • Starboard Side Sink with Cutting Board and Fiberglass Lid
  • Sunbrella Bow Tonneau Cover
  • Instrument Cover
  • Bow Seating with Insulated Storage Below

FISHING FEATURES

  • Rod Holders (2), Stainless Steel, in Gunwale
  • Lighted Oceana Blue 19 Gallon Recirculating Insulated Live Well
  • Under Gunwale Rod Storage (starboard)
  • Fish Box, in-transom (31 gallon) Insulated Fiberglass with Drain
  • Tackle Drawer/Storage Under Sink
  • Aluminum Reinforcement Plates for Downrigger Installation, Aft Gunwale (port and starboard)

HELM

  • Molded Console with Fixed Helm and Integrated Footrest
  • Hydraulic Steering Pump
  • 316L Stainless Steel Steering Wheel on Tilt Helm
  • 12V Panel with Illuminated Carling® Rocker Switches
  • Compass
  • Trim Tab Control Panel and Indicator
  • 12V Outlet (1)
  • Helm Fire Extinguisher
  • Visor
  • Starboard Coaming Box/Cup Holder & Storage
  • Windshield Wiper
  • Yamaha® Command Link Plus Display

CONSOLE (STARBOARD SIDE)

  • Molded Fiberglass Lined Storage with Starboard Door under Helm
  • Integrally Switched 12V Overhead Light
  • Table Storage
  • Dedicated Dock Line Storage

HEAD (PORTSIDE)

  • Two Piece Fiberglass Door with Gasket, Integrated Storage and 316 Stainless Steel Latch
  • Molded Fiberglass Interior
  • Console Entry Step
  • Electric Marine Head with 13 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze through Hull Fitting with Seacock
  • Sink with Pullout Freshwater Shower
  • Integrally Switched 12V Overhead Light
  • Toilet Tissue Holder

HARDTOP & WINDSHIELD

  • Molded Fiberglass Windshield Frame with Tempered Glass Windshield and a Center Walk-through Door
  • Fiberglass Hardtop with white Powder-coated Aluminum Frame including 60 mil Strataglass™ Front and Side Enclosures
  • Windshield wiper

ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, One-Piece Electrical Harness with Water Proof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
  • Two Battery System: Engine (1) and House (1)
  • One Grounding Bus Bar
  • Electronics Fuse Block

MECHANICAL SYSTEMS

  • Molded Interior White Gel Coat
  • Molded Hatch with Gasket and Stainless Steel Gas Spring
  • Two (2) 1500 GPH Bilge Pump with Electronic Switches and Stainless Steel Clad Composite Thru Hull Fittings
  • Fresh Water Pump with Filter
  • Raw Water / Livewell Pump with Sea Strainer, Sea Cock and Thru Hull Fitting

FUEL SYSTEMS

  • EPA Compliant Lined 139 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plate
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEMS

  • 18.5 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Cockpit Shower
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose





Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.



OPTIONS

BOAT w/ENGINES

Twin Yamaha® Digital F150 Twin Yamaha® Digital F200 Teleflex® Power Steering Twin Fresh White Painted Engine w/ Platinum Graphics Twin Fresh White Painted Engine w/ Yamaha® Gray Lower Unit and Platinum Graphics

COLOR SELECTIONS

Hull Color
Titanium, Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue
Helm Color
Titanium (Standard), Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue
Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray

MECHANICAL SYSTEMS

Windlass Anchor System (Lewmar w/Remote) Stainless Steel Delta Anchor All Color Sea Blaze Quattro Spectrum Underwater LED Lights (2)

COMFORT & CONVENIENCE

Fiberglass Bow Table Transom Mount Ski Tow

WEATHER

Stowable Cockpit Sunshade Sunbrella® Canvas color - Black, Tweed, Cadet Gray, or Navy Upgraded canvas - Stamoid® With Strataglass (White) Drop Curtain - Sunbrella® Drop Curtain - Stamoid® (white) Hardtop Aft Curtain - Sunbrella® Hardtop Aft Curtain - Stamoid® (white) Cockpit Cover - Sunbrella® Bow Tonneau Cover - Stamoid® (white) Engine Cover (twin) - Sunbrella®

SPORT FISHING

Hardtop Mounted Rod Holders (4)

ELECTRONICS

JL Audio Stereo AM/FM/USB Bluetooth w/4 Speakers Garmin Electronics Package
Includes: GPSMAP 7608XSV Display, Airmar B117 0-7 Degree 600 Watt Transducer, NMEA 2000 Starter Kit, VHF 300, VHF Antenna Galaxy 5225XP, Custom Pursuit Dash Panel
