Running shot of a Pursuit Offshore boat OS 325.

Pursuit OS 325 Offshore

Offshore and on point. Agile and seaworthy. Elevated and invigorated.
There are so many ways to describe the all-new OS 325. With a 34'6" LOA powered by twin 300 or 350 Yamaha® engines, it has been redesigned from the hull up, making it the definition of yacht-caliber luxury.

She shines with intelligent space utilization, heavy on features that matter, like a single-piece, optically-clear front windshield, forward-facing bridge deck seating, more rod holders, a dive door and large transom walkway. Plus, the well-appointed, modern interior finishes and sleek exterior curves are completely new yet completely Pursuit all at once.

The centerline walkway allows guests to move with ease from zone to zone with minimal conversions and maximum enjoyment. Meals can be prepared in either the cabin or the cockpit entertainment center which features a grill and sink. Dual refrigerators provide cold storage in both areas.

Below deck, you’ll instantly notice the class-leading open cabin space and storage, thanks to the streamlined galley. From the generous berth you can listen to the lapping waves and watch the moonlight stream in through the large hull-side windows. With the Pursuit OS 325, your time spent on the water will never be the same.

JOIN THE CLUB!

Learn more here.

Built with Pursuit’s

PURETECH SUITE™

Learn more here.

Introducing Pursuit’s OS 325

Couples relax on a Pursuit OS 325 under the Makefast sunshade.

Experience Pursuit’s OS 325

Aerial Running Shot of Pursuit OS 325 Offshore.

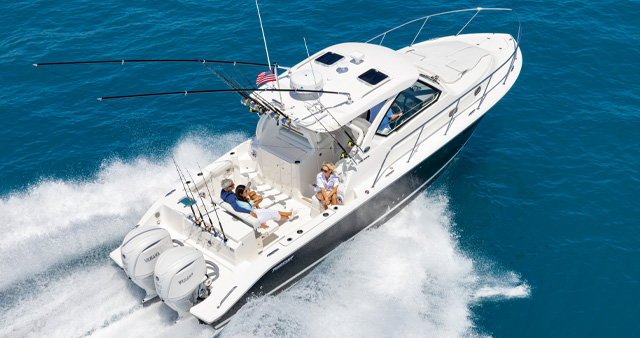

Aerial running shot of Pursuit Boat OS 325 rigged for fishing.

Aerial image of a Pursuit Offshore Boat with Yamaha Engines.

Image of two couples on a Pursuit Boat OS 325 with Outriggers.

Image of two couples on a Pursuit Boat OS 325 Offshore.

A Pursuit Boat OS 325 with carbon hull running offshore.

Aerial view of an OS 325 Pursuit Boat with Yamaha Engines.

A couple sits on the fold-away transom seat on a Pursuit Boat OS 325.

Aerial view of the bow of a Pursuit OS 325 as it cuts through the ocean.

Image of sunpad and optically clear windshield on a Pursuit Boat OS 325.

Image of a Pursuit Offshore boat OS 325 with dual Yamaha engines.

Image of Pursuit Boat’s OS 325 Offshore running.

OS 325 Pursuit Boat Offshore model underway.

Two couples enjoy fishing on a Pursuit OS 325 Offshore model.

Two men using the transom fishbox with tackle storage on a Pursuit Boat.

A woman uses the well-equipped entertainment Center on a Pursuit Boat with sink and grill.

There is plenty of seating and space to entertain on the Pursuit OS 325 Offshore.

Couples relax on the bridge deck of an OS 325 Pursuit Boat.

Couples enjoy the L-shaped seating and table on the bridge deck of an OS 325 Pursuit Boat.

Shot of Yamaha engines near the enlarged and newly optimized transom platform extensions on an Offshore Pursuit boat.

Yamaha engines on the back of a Pursuit OS 325.

Women relax on the padded chaise-style sunpad lounger with adjustable back rests on a Pursuit Boat.

Women relax on the padded chaise-style sunpad lounger with adjustable back rests on a Pursuit Boat OS 325.

Woman deploys windlass anchor system on a new Pursuit OS 325 Offshore.

L-Shaped seating next to the captain’s chair on a Pursuit Boat offshore model.

The captain’s seat on a Pursuit Boat OS 325 Offshore.

Seating options on Pursuit Boats OS 325 Bridge Deck.

Captain’s chair, helm with Garmin electronics and a refrigerator on a Pursuit Boat OS 325.

Captain’s chair, helm with Garmin electronics and a table on the bridge deck of a Pursuit Boat OS 325.

Factory-installed Garmin electronics are standard and include twin 16” screens on this Pursuit OS 325 Offshore.

A fold-down step gives extra height when needed or acts as a footrest while seated at the helm of a Pursuit OS 325.

A secondary refrigerator is conveniently located on the Bridge of Pursuit Boats OS 325.

The port side cockpit entertainment center includes a grill with a large sink and folding faucet with a removable cover for additional working space on a Pursuit Boat.

The Pursuit OS 325 offers clever storage and a trash can beneath the entertainment center.

The Pursuit OS 325 has storage under the L-lounge that offers space to stow gear or the optional high-gloss bridge deck table.

The crew can enjoy the forward L-lounge which includes a fold-out backrest allowing the passenger to face forward on the port side on this Pursuit Boat.

The optional starboard side fold-out seat makes the area a true social zone on the OS 325 Pursuit Boat.

The transom storage box on the Pursuit Boat OS 325 offshore has a removable storage box.

Image of Pursuit Boats signature patented fold-away transom seat.

A photo of the cockpit of a Pursuit Boat OS 325 with both fold-away seats open.

A fish box opened on a Pursuit Boat OS 325 Offshore.

A view of Pursuit Boats port hullside dive door.

Always American Made, the Pursuit model is has plenty of rod holders and extended platforms in the transom.

A view of the comfortable cabin of the Pursuit Boat OS 325.

Wooden stairs lead down to the cabin where you can access the aft berth.

The scissor style berth on Pursuit Boat OS 325.

A view of the scissor berth when open with table shows the versality of the cabin on the Pursuit Boat OS 325.

The private head on the Pursuit OS 325 features a solid-surface countertop with sink, vanity mirror and storage as well as a porcelain bowl.

Printed Materials

Performance

Twin Yamaha® F350 Engines

Articles

L.O.A.

34' 6" (10.52 m)

Beam

10' 10" (3.30 m)

Hull Draft
(motors up)
(motors down)

2' 2" (0.66 m)
2' 9" (0.84 m)

*Clearance w/Hardtop
(from waterline)

9' 3" (2.82m)

Approx. Dry Weight
(twin F350 engines)

13,740 lbs. (6,232 kg)

**Fuel Capacity

300 U.S. gallons (1,136 L)

Diesel Generator Tank

16 U.S. gallons (61 L)

Fresh Water Capacity

30 U.S. gallons (114 L)

Holding Tank Capacity

18 U.S. gallons (68 L)

Max. Horsepower

700 hp (522 kw)

Sleeping Capacity

Deadrise

20°

*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.

Effective date: July 1, 2024

HULL FEATURES

Pursuit® Protection Plan:
5-year hull/deck structural warranty
5-year blister-free warranty
2-year limited warranty
Pursuit Fresh White Gelcoat
Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
Foam Filled Structural Grid
Bronze Thru Hull Fittings Below Water Line
Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
Bronze Garboard Drain
Trim Tabs, Lenco Electric with Auto-Retract
Bow Eye, 5/8" 316L Stainless Steel
Integrated Transom Platform Extensions Outboard of Engines
Boarding Ladder, 4-Step Telescopic (Mounted in Transom Platform Extension)
Anchor System, Integrally Molded Thru-Stem
Bow Thruster, 3.0 HP (2.2 kw) with Group 31 AGM Battery, Switch and Fuse
Dedicated Transducer Location
Forward hull compartmentation with one (1) 1100 GPH bilge pump with automatic float switch
Molded Hull Side Frameless Tempered Glass Windows

DECK FEATURES

Hull and Deck Joint Mechanically Fastened and Thru-Bolted at Cleat Locations
Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
Transom Cap, 316L Stainless Steel
Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
Flush Mounted Integral Anchor Locker with Gas-Assisted Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker, 316L Stainless Steel Hinging Thru-Stem Anchor Roller with 8" Mooring Cleat and Chain Binder, 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle, 200' Rode (1/2" 8 Plait including 20' of ¼" G4 Chain), Fresh and Raw Water Connections, LED Courtesy Light
Cleats, 316 Stainless Steel, 10" Pop Up (2) Stern, 10" Fixed (4) Spring and (2) Bow
Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
Self-Draining Cockpit with Molded Water Management System and Drains w/316L Stainless Steel Drainage Grates
Bow Rail, one-piece, welded 316L Stainless Steel, with 1 1/4" Top Rail and 1" Stanchions
Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)
Single-Level Splashwell Deck with Nonskid for Athwartship Access
Navigation Lights, LED, 2 Mile
Foredeck Hatch, 17" x 17", Flush with Adjuster and Screen
Opening Port Lights (4) with Screens and Stainless Steel Frames
316L Stainless Steel Foredeck Grab Rails

COCKPIT & BRIDGE DECK FEATURES

Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
Custom Molded Side Boarding Door (Port) with Heavy Duty 316L Stainless Steel Hardware and Deck Mounted 316L Stainless Steel Keyway Plate for Dive Style 4-Step Telescoping Ladder (with dedicated storage on underside of mechanical space hatch)
Captain's Chair with Swivel Base, Foldable Armrests, Fore and Aft Adjustment and Flip-up Bolster
Molded Port Bridge Lounge Seating with Fold-Out Forward-Facing Backrest, Molded Footrest Area, Equipment Storage Under Seat Base, (3) 316L Stainless Steel Drink Holders and Padded Console with Recessed Flat Storage Area
Audio Entertainment System: Custom-Tuned JL Audio Stereo System with Bluetooth® Compatible Media Master MM105-HR Hidden Source Unit, Helm-Mounted Volume Control Knob, Premium M6 Coaxial Speakers with Classic Grilles - 7.7" (4), 6.5" (2), 10" Subwoofer (1), DSP Amplifier, Wireless Remote Control, and FM Antenna with Ratchet-Mount Base
Molded Entertainment Center with Electric Grill, Sink, Hot/Cold Mixing Faucet, Cutting Board, Dedicated Trash Can Storage, Tackle and Gear Storage, 120v Outlet with GFCI Protection and Hinged Fiberglass Lid and Doors
Galley Space with Pull-Out Style 2.3 cu. ft. Refrigerator/Freezer, Corian Countertop, and (2) 316L Stainless Steel Extra-Deep Drink Holders
Molded Aft Facing Cockpit Seat with Tub Storage Below
Folding Transom Seat with Patented Adjusting Backrest
Cockpit Machinery Access Hatch
Fresh Water Wash with Hot/Cold Mixing Valve and Chrome over Brass Pull-out Sprayer at Transom Door
Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
LED Cockpit & Bridge Deck Courtesy Lights and Blue Mid-Level Accent Lights
Aft Cockpit Extra-Deep 316L Stainless Steel Drink Holders (4)

FISHING FEATURES

Rod Holders (12), Stainless Steel, (4 Gunwale, 4 Transom, 4 Hardtop Supports)
Lighted Oceana Blue 32 Gallon Recirculating Livewell with Dedicated Bronze Strainer and Overboard Discharge
Under Gunwale Rod Storage (Starboard)
Fish Boxes with Molded Insulation and Diaphragm Pumps with Overboard Discharge (Port [27 gallons] and Starboard [24 gallons])
Cockpit Tackle Center with Plano Boxes and Storage Drawer
Transom Cutting Board

HELM

Molded Fiberglass Aft Tilting Helm with Instrumentation Visor and Electronics Mounting Surface
Fold-Down Platform Step with Nonskid for Secondary Standing Operating Position
Edson 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
Yamaha Electronic Steering Control with Programmable Steering Friction
12V Switch Panels with Back Light Function Displays
JL Audio MM105-HR Hidden Source Unit (full-function control on Garmin® MFDs), Helm-Mounted Volume Control Knob, and USB Input
Wireless Phone Charger
Compass with Light
Trim Tab Control Panel and Indicator
Bow Thruster Joystick Control
12V Outlet (1)
Dual USB Charger (1)
Drink Holders, 316L Stainless Steel (2) – Extra Deep
Fire Extinguisher

ELECTRONICS

Garmin® Electronics Package: Dual GPSMAP 8616 [1 XSV] with Pursuit Custom Dash Panel, Airmar B175M 1kW CHIRP Transducer, NMEA 2000 Starter kit, Yamaha MFDI Interface, and VHF Radio with Antenna and Ratchet-Mount Base
SirenMarine® Connected Boat® Smart Boat Monitoring & Theft Deterrent System: Siren 3 Pro Main Device with Mobile App Interface, GPS Vessel Tracking and Sensors for Battery, Shore Power, Bilge and Security Monitoring (includes 3-month subscription)

HARDTOP & WINDSHIELD

Molded Fiberglass Hardtop with Integrated Visor and Designated Locations for Radar, Outriggers, and Spotlight or Flir Camera
Powder Coated Aft Structural Hardtop Supports with Rod Holders (4)
Custom Windshield System with Optically Clear Laminated Windshield Glass, Tempered Side Glass with Infused Fiberglass Frame and Electrically Actuated Center Vent Window
Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control
Power-Actuated Stainless Steel Anchor/Stern LED Navigation Light with Burgee Rings and Embroidered USA Flag
Four (4) Tri Color LED Lights
Aft Facing LED Spreader Lights (2)
316L Stainless Steel Fore/Aft Underside Grab Rails
Powder Coated Fore/Aft Topside Grab Rails
Integrated Stereo Speakers (4)
Horn, Trumpet
Integrated Glove Box Over Helm Area
Port and Starboard Ventilation Hatches with Dual-Purpose Sliding Screens/Shades
Side Curtains w/60 mil Strataglass™

INTERIOR CABIN

Molded Acrylic Access Door with Gasket, 316L Stainless Steel Locking Latch and Interior/Exterior Grab Rails
Cabin Entry Steps with Solid Wood Treads
Molded Cabin Hull and Deck Liner with Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access, Drainage and Sound Damping Insulation
Laminated Interior Cabinetry with Corian Tops & Accents
Custom V-Berth Seating that Converts into Berth with Storage Space Below
Solid Wood Table with Power Adjustable Pedestal
24” Smart TV (120V)
Flush Mounted Foredeck Hatch with Screen
Mid-berth Full-size 3" Foam Mattress and Quilted Cover
Mid-berth Hanging Locker and Storage to Portside
Port & Starboard Hull Side Windows with Custom Window Trim & Pleated Blinds
316L Stainless Steel Opening Port Lights (4) with Screen
Switch Panel for Overhead LED Lights, Reading Lights, LED Floor Accent Lights and Actuated Table
Horizontal Rod Storage for (4) Rods
CO Monitor
Fire Extinguisher

GALLEY (PORT)

Corian® Galley Countertop with Flip-Up Counter Extension
Galley Lower Storage Cabinet with Drawers (2) and Slide-Out Trash Can
12V 1.06 cu. ft. Stainless Steel Drawer-Style Refrigerator
Galley Pantry Storage Locker with Storage Shelves and Hardwood Keepers
Galley Side Upper & Lower Cabinet Storage with Doors
12V LED Overhead Lights
12V Outlet and dual USB Charger
120V 1.1 cu. ft. Stainless Steel Faced Microwave Oven
120V Outlet with GFCI Protection (1)

HEAD (STARBOARD)

Fiberglass Private Head Compartment with Non-Skid Pattern Area
Custom 1 1/4" Wood Framed Entrance Door with Custom Latch and Towel Hooks
Vanity with Corian® Countertop, Recessed Sink, Faucet with Hot/Cold Pull-out Shower Wand, Grab Rail/Towel Rack, Storage Below and Vanity Mirror (with storage behind)
Vacuum Flush Marine Head with 18 Gallon Holding Tank, Macerator Discharge Pump, Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
Fiberglass Toilet Seat Cover
Shower Curtain with Track
316L Stainless Steel Opening Port Light with Screen
Toilet Tissue Holder
Shower Sump Box Drain with Automatic Discharge Pump
Switch Panel for Overhead LED Lights & LED Floor Accent Light
120V Outlet with GFCI Protection (1)

ELECTRICAL SYSTEMS

UL® Rated Fully Tinned, Color Coded Copper Wire
Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection
Powder Coated, Aluminum, Screen Printed (Front and Back) DC Main Distribution Panel (in Bridge Deck)
Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
Five Battery System: Port Engine (1), Starboard Engine (1), Bow Thruster (1) (AGM), House (1) (AGM) and Electronics (1) (AGM)
Single 120V 30 Amp 60 Cycle Dockside Power Connection with AC Main Distribution Panel (in cabin) and 50’ Dockside Power Cord
Isolation Transformer
120V Outlets with GFCI Protection
12V Outlets and USB Charging Ports
40 Amp Battery Charger for House, Electronics and Bow Thruster Batteries
20 Amp Battery Charger for Engine Cranking Batteries
Grounding Bus Bar
Electronics Fuse Block

MECHANICAL SYSTEMS

Molded Interior White Gel Coat Structural Foundation
Molded Hatch with Gasket, Stainless Steel Gas Spring, and Dedicated Storage for Hull Side Boarding Ladder
Molded Bilge Sump Area
Stern Anchor, 4 lb. Aluminum Adjustable Fluke-Style with 50' of 1/2" Anchor Rode, 5' of 1/4" G4 Chain, and Custom Pursuit Storage Bag
Two 1500 GPH Bilge Pumps with Electronic Switches (One High-Water with Alarm) and Stainless Steel Clad Composite Thru Hull Fittings
Fresh Water Pump with Filter
Raw Water Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
Dedicated Fish Box Diaphragm Evacuation Pumps
LED Machinery Space Light

FUEL SYSTEM

EPA Compliant Lined 150 Gallon (Port and Starboard) Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates
Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEM

30 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
Pressure Sensing/Variable Speed Pump
Fresh Water Distribution Manifold with Dedicated Valves
Dockside Fresh Water Inlet with Pressure Regulator
6 Gallon Stainless Steel Water Heater, 120V/60 Cycle
Cockpit Shower with Hot/Cold Mixing Valve

Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation.
Some of the boats shown include optional or dealer-installed equipment.

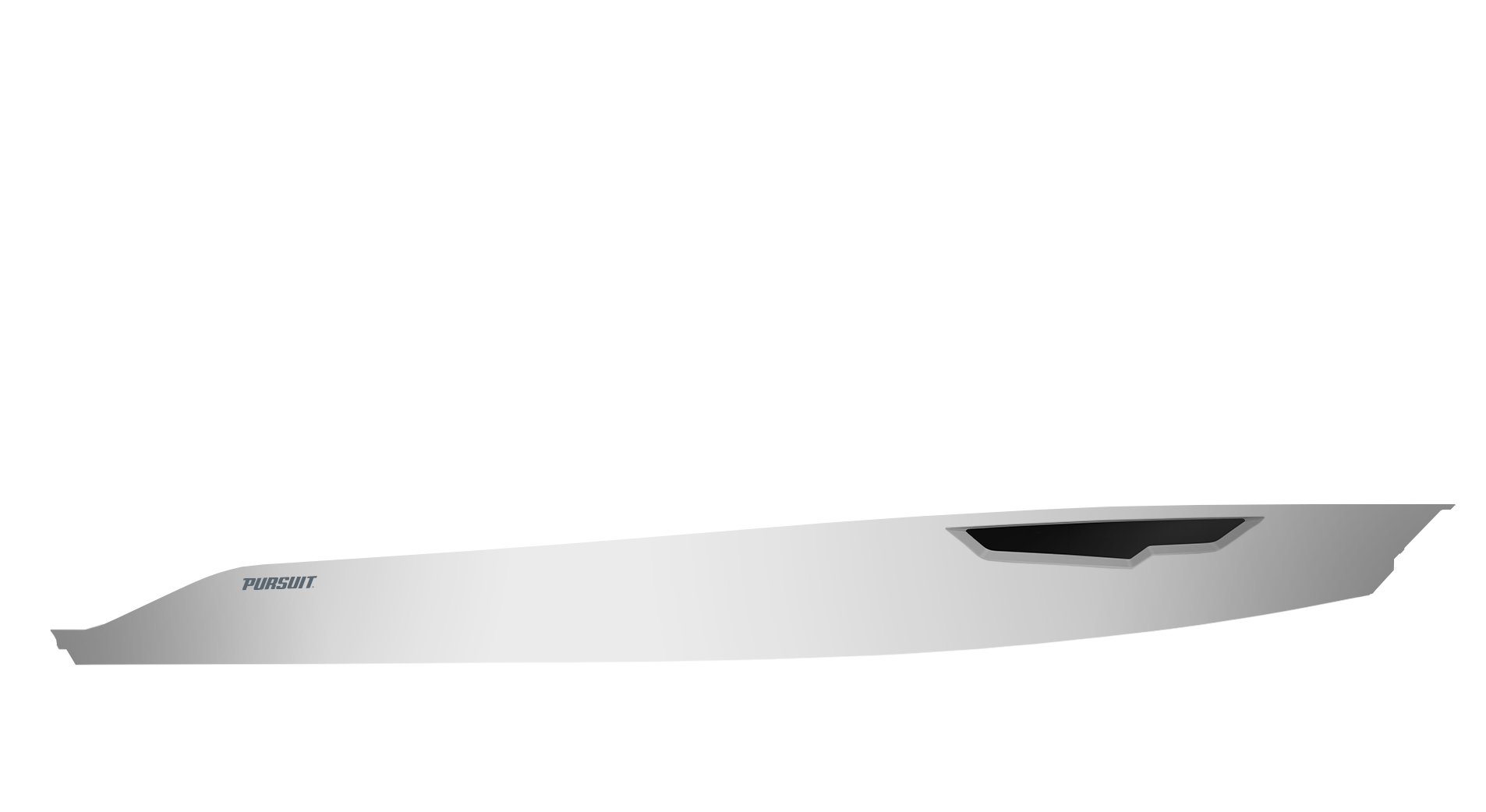

Hull Color - Carbon

Bootstripe Color - Red/Red

Helm Color - Carbon

BOAT WITH ENGINES

Twin Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), Multifunction Display Interface Twin Yamaha® Digital F350 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), Multifunction Display Interface Yamaha® Joystick Control with Full Maneuverability (Set PointTM and Autopilot)

COLOR SELECTIONS

Hull Color
Carbon, Neptune Gray, Sea Mist, Flag Blue, Arctic Blue, Fresh White Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue) Helm Color
Carbon, Neptune Gray, Sea Mist, Flag Blue, Arctic Blue, Fresh White Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray Upholstery Color
Sea Salt (Standard), White

MECHANICAL SYSTEMS

Generator (5.0kw 120v/60Hz Fischer Panda Genset) with 16 Gallon Diesel Tank Cabin Air Conditioning with Reverse Cycle 120v/60Hz (10,000btu) (takes place of storage under starboard V-berth cushion) Cockpit Air Conditioning with Reverse Cycle 120v/60Hz (12,000 btu) (Includes Cockpit Grill) Spotlight (ACR RCL-100 LED) with Remote Control at Helm Underwater Lights (3) All Color Sea Blaze Quattro Spectrum

COMFORT & CONVENIENCE

Fiberglass Cockpit Table with Dedicated Storage Bridge Deck Teak Table with Dedicated Storage Forward Deck Sun Pad with Chaise Style Adjustable Backrests (2) and Stamoid Cover Starboard Side Folding Seat Under Gunwale (deletes gunwale rod rack) Premium Stereo Upgrade: All Speakers Upgraded to Sport Grilles with Full Spectrum Backlighting (controlled through MFDs), Two (2) Additional 6.5" Coaxial Speakers, One (1) additional 10" Subwoofer, One (1) Additional Custom-Tuned DSP Amplifier and SiriusXM® Receiver with Antenna (Incudes 3 Month Subscription)
Note: for visibility purposes, the two forward hardtop overhead 7.7" speakers are not backlit

WEATHER OPTIONS

Custom Hardtop Integrated Electric Retractable Sunshade with One Touch Operation Bow Mediterranean Sunshade, Removable with Stowable Hardware Sunbrella® Canvas Color: Black, Tweed, Cadet Gray or Navy Upgrade Standard Canvas - Stamoid® (White) 3 pc. Drop Curtain - Sunbrella® 3 pc. Drop curtain - Stamoid® Aft Curtain - Sunbrella® Aft Curtain - Stamoid® Instrument Cover - Sunbrella® Engine Covers (2)- Sunbrella®

SPORT FISHING

Hardtop Mounted Rod Holders (5) Outriggers with 18' Telescoping Poles and Rigging Kit Outriggers - Upgrade to 20' Carbon Fiber Telescoping Poles (Need to Order Outriggers)

ELECTRONICS

Garmin® Radar GMR 24 xHD (Dome) Garmin® GC-14 Rear Facing Camera FLIR Night Vision with Image Stabilization (Cannot be Ordered with Spotlight Option, May Not be Available for Purchase Outside of the U.S.) SiriusXM® Weather Receiver (Subscription Required)

INTERIOR FABRIC

Tranquil Seas (Standard)

Coastal Sunrise
