Woman at the helm running a Pursuit S 248 Center Console Sport Boat.
S 248

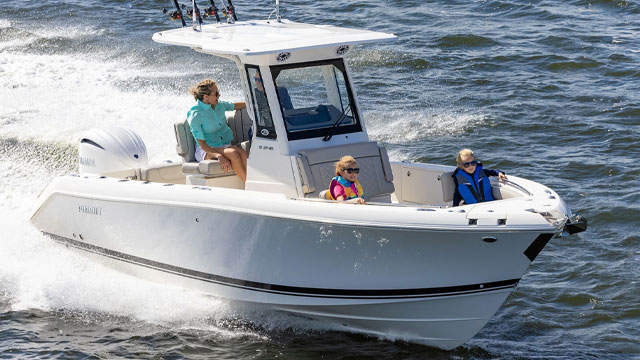

Pursuit S 248 Sport Center Console

Step aboard the S 248 and experience luxurious amenities beyond your expectations.

With a single Yamaha® engine, this 25' 8" entry-level Pursuit is the definition of class-leading. Designed to cater to anglers, the in-floor fishboxes, ample storage bays and spacious aft cockpit are sure to impress. The generous over-sized fiberglass hardtop with full windshield over the center console will protect from the weather when you are running and the sun when you are anchored. Even details like our patented folding aft seat and easy-pull slide out for your cooler demonstrate that nothing was left to chance.


Sample Advantage Club Membership card


Learn more here.






25' 8" (7.82 m)
8' 6" (2.59 m)
Hull Draft
(motors up)
(motors down)
1' 10" (0.56 m)
3' 0" (0.91 m)
*Clearance w/Hardtop
(from waterline)
8' 10" (2.69 m)
Approx. Dry Weight
(single F300 engine)
6,050 lbs (2,744 kg)
**Fuel Capacity
120 U.S. gallons (454 L)
Fresh water Capacity
20 U.S. gallons (76 L) Optional
Holding Tank Capacity
6 U.S. gallons (23 L) Optional
Max. Horsepower
300 hp (224 kw)



Plan View


**Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.




Effective date: August 1, 2023


  • Pursuit® Protection Plan:
    5 Year Hull and Deck Structural Warranty
    5 Year Blister Free Warranty
    2 Year Limited Warrant
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • 3 Ply Resin Infused Composite Transom System
  • Integrated Transom Platform Extensions Outboard of Engine
  • Boarding Ladder, 3 Step Telescopic, Mounted in Hull Platform
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Rope Locker, Self-Draining
  • Anchor Scuff Plate
  • Horn, Electric with Oval Stainless Steel Cover
  • Bow Eye, 1/2" 316L Stainless Steel
  • Stern Eyes (2), 1/2" 316L Stainless Steel
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Dedicated Transducer Location


  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Hull and Deck Joint Mechanically Fastened
  • Molded Single-Level Transom Platform/Splash Well with Storage Compartments with Fiberglass Hatches (Port and Center), and Integrated Rigging
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Cleats, 316L Stainless Steel - 8” Pop-Up (2) Stern, (2) Mid-Ship and (2) Bow
  • Navigation Lights, 2 Mile LED (Port and Starboard)
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid
  • Anchor Roller Chute with 8" Cleat, 14lb Galvanized Plow-Style Anchor and Rode (150' of 1/2" 8 Plait including 10' of 1/4" G4 Chain)
  • Molded Transom Walkthrough and Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Bow Grab Rails, 316L Stainless Steel (Port & Starboard)
  • Transom Grab Rail, 316L Stainless Steel (Starboard)


  • Molded Recessed Hatches with Flush Hinges, Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Under-Gunwale Rod Storage, Port and Starboard (fits 9.5' rods in lower holders)
  • Folding Transom Seat with Patented Self-Adjusting Backrest
  • Fiberglass Leaning Post with Tackle Storage Drawer and Integrated 45-Quart Yeti Cooler with Slide-Out Tray
  • Helm Seating with Split Fold-Up Bolsters and Outboard Foliding Armrests
  • 316 L Stainless Steel Cockpit Drink Holders
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • LED Cockpit Courtesy Lights
  • Coaming Storage Boxes with Hinged Lids (Port and Starboard) - Fwd of Console
  • Bow Seating, Console (double-wide) - Forward-Facing with Folding Armrests
  • Bow Seating, Forward (Port & Starboard) with Fiberglass Hatches, Removable Cushions and Insulated Storage Below
  • Bow Coaming Storage Boxes (Port & Starboard) with USB Charger (Port)
  • Forward In-Floor Storage with Fiberglass Hatch and Stainless Steel Gas Spring
  • Fire Extinguisher (Under Starboard Gunwale)


  • Rod Holders, Stainless Steel (8) - Gunwales (4) and Transom (4)
  • Fish Boxes, In-Floor (port & starboard, 11 gallons each) with Foam Insulation and Diaphragm Discharge Pump with Diverter Valve
  • Live Well, Lighted 24 Gallon Recirculating


  • Molded Fiberglass Hardtop
  • Windshield, Full-Height Tempered Glass with Side Wings
  • Powder Coated Structural Hardtop Supports with Grab Rails
  • Overhead Storage Box
  • Rod Holders (4)
  • Anchor/Stern Light with Custom Stainless Steel Post with Burgee Rings, USA Flag and Ratcheting Mount
  • Overhead Lights (2), Tri-Color LED
  • Spreader Lights (2), LED - Fore and Aft Facing
  • Dedicated Locations for Radar, Outriggers, VHF and FM Antennas


  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface and Integrated Fiberglass Footrest
  • Steering Wheel, 316L Stainless Steel on Tilt Sport Plus Helm
  • 12V Switch Panel with Illuminated Rocker Switches
  • Compass
  • Trim Tab Control Panel with Indicator
  • 12V Outlet and Dual USB Charger
  • Drink Holders, 316L Stainless Steel (2) Extra Deep
  • Storage Tray with Non-Slip Padded Surface


  • Two Piece Fiberglass Door with Gasket and 316 Stainless Steel Locking Latch
  • Molded Fiberglass Interior
  • Console Entry Steps
  • Head, SaniPottie with 5 Gallon Holding Tank (Removeable)
  • Toilet Tissue Holder
  • Storage Cabinet with Hinged Access Doors
  • Integrally Switched 12V Overhead Light
  • 12V Distribution Panel and Battery Switch
  • Fire Extinguisher


  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, One Piece Electrical Harness with Waterproof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front & Back) Battery Switch and Breaker Panel
  • Two Battery System: Engine (1) and House (1)
  • Grounding Bus Bar
  • Electronics Fuse Block


  • Stainless Steel Anchor
  • Molded Interior with Integrated Bilge Sump Area and White Gel Coat
  • Molded Removable Access Hatch with Gasket
  • Bilge Pumps: 1100 GPH (2) Low Profile with Automatic Float Switches and Stainless Steel Clad Composite Thru Hull Fittings
  • Live Well Pump - 1100 GPH Tournament Series with Seacock and Thru Hull Fitting
  • Raw Water Pump, Pressure Sensing with In-Line Filter


  • EPA Compliant Lined 120 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valve and Digital Level Indicator
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Yamaha® Water Separating Fuel Filter with Primer Bulb



Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.


Hull Color - Carbon

Bootstripe Color - Red/Red

Helm Color - Carbon


Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), CL5 Display Single Yamaha Joystick Control


Hull Color
Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White (Standard)
Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue) Underside Hardtop Color
Fresh White (Standard), Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue
Helm Color
Carbon (Standard), Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White
Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray
Upholstery Color
Sea Salt (Standard), White/Gray


Windlass Anchor System with Remote Windshield Wiper (does not include washer unless freshwater system is selected)


Bow Beach Boarding Ladder (gets fresh water washdown when freshwater system is selected) Electric Marine Head with 6-Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock (must select freshwater system) Portlight, 316L Stainless Steel Framed with Removable Screen Underwater Lights (2) All Color Sea Blaze Quattro Spectrum Stereo, JL Audio System: MM105 AM/FM/USB Bluetooth Head Unit with 6.5" Speakers (4 - Hardtop), 8" Subwoofer (1), Amplifier, and External FM Antenna with Ratchet Mount Base Stereo – Premium Upgrade: JL Audio MM105 AM/FM/USB Bluetooth Head Unit with 6.5" Speakers (6 – 4 Hardtop / 2 Bow), 8" Subwoofers (2), Custom Tuned DSP Amplifiers (2), Upgraded Sport Grills, External FM Antenna with Ratchet Mount Base, and SiriusXM Receiver with External Antenna (Includes 3-Month Subscription) Premium Helm Seating with Four (4) Folding Armrests, Articulating Flip-up Bolsters, Seat Slide with Fore/Aft Adjustments, and Edson® 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip Bow Table, Fiberglass (with Dedicated Storage) Bow Seating Forward-Facing Backrests, Rotating (Port & Starboard) Bow Seating Filler/Casting Platform with Sun Pad Cushions (with Dedicated Storage) Ski Tow Pylon, Transom-Mount - Recessed/Pop-Up Freshwater System: Aft Cockpit Shower with 20 Gallon Water Tank, 316L Stainless Steel Deck Fill Plate and Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends (when windshield wiper is selected, includes wiper washer)(when bow ladder is selected, includes washdown with quick-connect fitting, coil hose and spray nozzle) Mid-Level Cockpit Accent Lights, LED Blue


Bow Med-Style Sunshade, (Stowable) Aft Cockpit Med-Style Sunshade (Stowable) Hardtop Connector Side Curtains with Dodger Wings (Strataglass 30 mil) - Sunbrella® Aft Curtain - Sunbrella® Bow Tonneau Cover - Sunbrella® Instrument/Dash Cover - Sunbrella® Leaning Post Cover Engine Cover - Sunbrella® Sunbrella® Canvas color - Black, Tweed, Cadet Gray or Navy


Garmin® Electronics Package: GPSMAP 8612XSV, Airmar B75M 600 watt CHIRP Transducer, NMEA 2000 Starter kit, Pursuit Custom Dash Panel, VHF Antenna, Garmin® 315 VHF Radio Second Garmin® GPSMAP 8612 Display (Requires Electronics Package)
