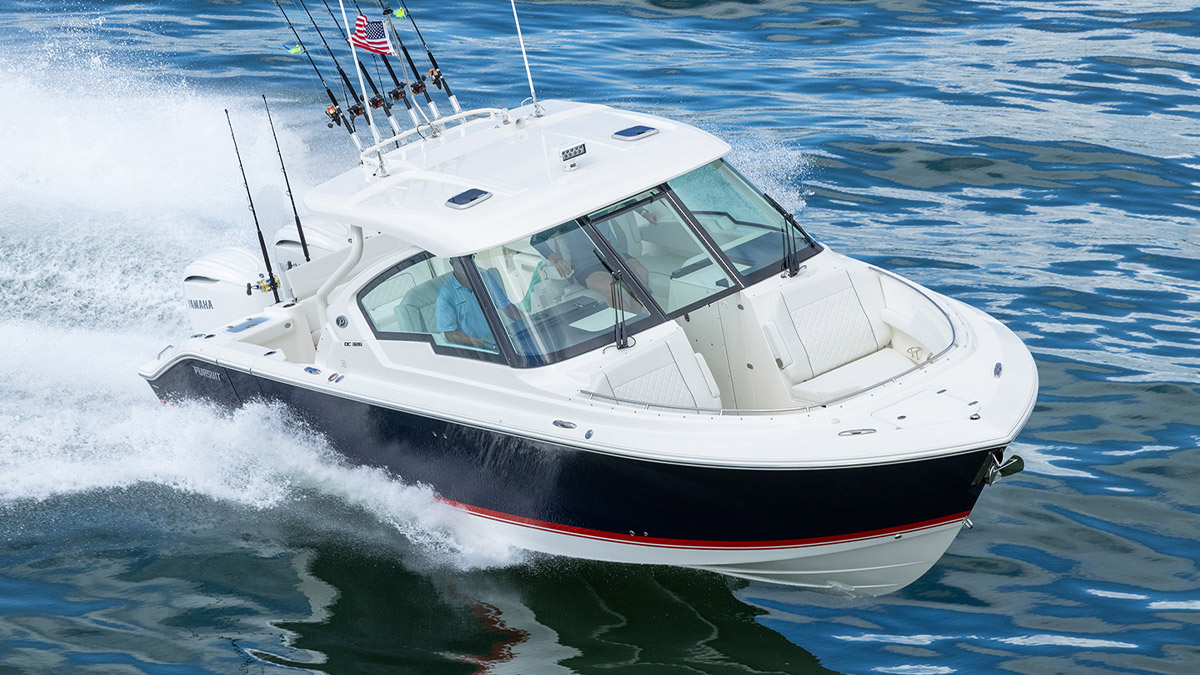

Titanium Pursuit DC 326 running left
DC 326 Dual Console Model Designator



The DC 326 – is a popular addition to Pursuit’s innovative and award-winning Dual Console Boat family - builds on the reputation of one of their most popular boats, the DC 325.

The DC 326 features a fully integrated fiberglass hardtop with tempered glass windshield, thoughtfully designed storage and starboard hull side door - all with the distinctive aesthetic of Pursuit’s Dual Console Boat series.

A port side wrap-around lounge, rotating helm seat, forward bow and foldaway cockpit seating offer plenty of room for friends, family and crew while rod holders, recirculating livewell and dedicated tackle storage are ready to fish.



Sample Advantage Club Membership card

JOIN THE CLUB!

Learn more here.





Sunrise view of DC 326 dual console boat.
Front quarter view of Titanium Pursuit DC 326 dual console boat.
Titanium Pursuit DC 326 dual console boat running left.
Profile view of Titanium Pursuit DC 326 dual console boat.
Titanium Pursuit DC 326 dual console boat running right.
Port side view of Titanium Pursuit DC 326 dual console boat running left.
Aerial view of titanium Pursuit DC 326 dual console boat with passengers siting in cockpit social zone.
Aerial profile view of titanium DC 326 dual console boat running left.
Aerial rear three quarter view of titanium DC 326 dual console boat running right.
Aerial rear view of titanium DC 326 dual console boat.
Aerial rear view of titanium DC 326 dual console boat.
Aerial profile view of titanium DC 326 dual console boat running right.
Aerial front one quarter view of family in a titanium DC 326 dual console boat running left.
Aerial front view of family in a titanium DC 326 dual console boat.
Aerial overhead view of titanium DC 326 dual console boat running left.
Aerial overhead front view of family in a titanium DC 326 dual console boat.
Aerial profile view of titanium DC 326 dual console boat running right.
Aerial rear view of titanium Pursuit DC 326 dual console boat with passengers siting in cockpit social zone.
Profile view of titanium DC 326 dual console boat facing right.
Front view of titanium DC 326 dual console boat.
Detail view of DC 326 dual console boat bow social zone with table.
Detail view of DC 326 dual console boat bow grab rail.
Detail view of DC 326 dual console boat bridge deck social zone.
Aerial detail view of transom rod holders.
Detail view of DC 326 dual console boat entertainment center sink and grill.
Interior detail view of DC 326 dual console boat starboard hull side door and step.
Detail view of DC 326 dual console boat folding transom seating.
Detail view of DC 326 dual console boat cockpit seat with insulated storage.
Detail view of DC 326 dual console boat bow area.
Detail view of DC 326 dual console boat bridge lounge seating.
Detail view of DC 326 dual console boat swivel helm seat.
Detail view of DC 326 dual console boat port side bow seating.
Detail view of DC 326 dual console boat port side bow seating storage.
Aerial view of DC 326 dual console boat bow area.
Aerial view of DC 326 dual console boat bow area with port and starboard seating storage open.
Aerial view of DC 326 dual console boat bow area with table.
Aerial view of DC 326 dual console boat bow area with sunpad filler.
Detail view of DC 326 dual console boat port side console.
Detail view of DC 326 dual console boat head area.
Detail view of DC 326 dual console boat folding seat (portside) under gunwale.
Detail view of DC 326 dual console boat folding seat (portside) under gunwale.
Detail view of DC 326 dual console boat transom door open.
Detail view of DC 326 dual console boat entertainment center open stainless steel drawer refrigerator
Detail view of DC 326 dual console boat transom live well.
Detail view of DC 326 dual console boat cockpit fish box.
Aerial detail view of DC 326 dual console boat Folding transom seating.
Detail view of DC 326 dual console boat port side cabin.
Detail view of DC 326 dual console boat open anchor locker.
Detail view of DC 326 dual console boat Retractable Sunshade.

Printed Materials

Performance

Articles



PURE. APPRECIATION.





L.O.A.
34' 6" (10.52 m)
Beam
10' 10" (3.30 m)
Hull Draft
(motors up)
(motors down)

2' 0" (0.60 m)
2' 11" (0.89 m)
*Clearance w/Hardtop
(from waterline)

8' 6" (2.59m)
Approx. Dry Weight
(twin F300 engines)

12,900 lbs. (5,851 kg)
**Fuel Capacity
300 U.S. gallons (1,136 L)
Fresh Water Capacity
30 U.S. gallons (114 L)
Holding Tank Capacity
10 U.S. gallons (38 L)
Max. Horsepower
600 hp (447 kw)
Deadrise
20°

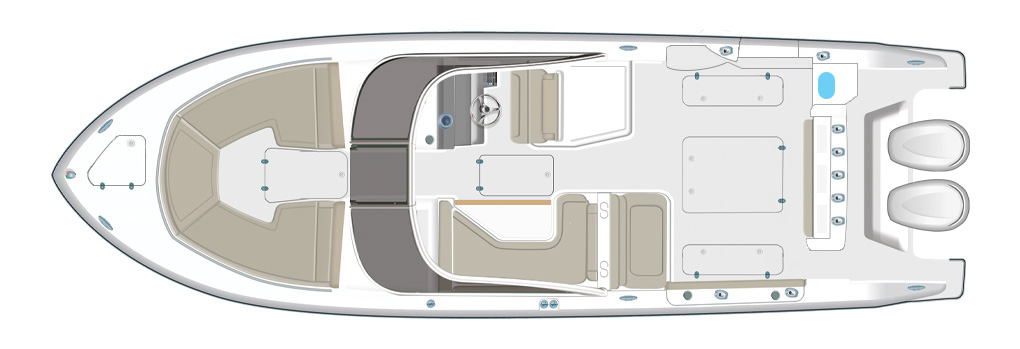

Plan View



*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.







Effective date: July 1, 2022

HULL Features

  • Pursuit® Protection Plan:
    5‐Year Hull and Deck Structural Warranty
    5‐Year Blister Free Warranty
    2‐Year Limited Warranty
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome Over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 5/8” 316L Stainless Steel
  • Integrated Transom Platform Extensions Outboard of Engines
  • Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform
  • Anchor System, Integrally Molded Thru-Stem
  • Bow Thruster, 3.0 HP (2.2 kw) with Group 31 AGM Battery, Switch and Fuse
  • Dedicated Transducer Location
  • Forward Hull Compartmentation with One 1100 GPH Bilge Pump with Automatic Float Switch

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker with Fresh and Raw Water Washdown
    316L Stainless Steel through Stem Anchor Roller with 8” Mooring Cleat and Chain Binder
    22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle, 200’ Rode (1/2” 8 Plait including 20’ of ¼” G4 Chain)
  • LED Anchor Locker Light
  • Cleats, 316 Stainless Steel, 10” Pop Up (2) Stern, (4) Spring and (2) Bow
  • Molded Recessed Hatches with Flush Hinges, Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Bow Grab Rail, 316L Stainless Steel
  • Transom Grab Rails, 316L Stainless Steel,(Port and Starboard)
  • Molded Non-Skid Steps in Splashwell for Athwartship Access
  • Pursuit Logos, Illuminating (Port and Starboard)
  • Navigation Lights, LED, 2 Mile
  • Opening Port Light with Screen and Stainless Steel Frame

COCKPIT FEATURES

  • Side Boarding Door (Starboard Side) with Removable/Storable Ladder
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Molded Forward Bow Seating with Flip-down Armrests and Insulated Storage Below
  • Port and Starboard Forward Coaming Boxes with Four (4) Drink Holder, Storage Keeper, 12V and USB Outlets, Mid-Level Lighting, Stereo Remote and (2) Speakers
  • Captain’s Bench Seat with Swivel Base, Foldable Armrests, Fore and Aft Adjustments and Flip-up Bolster
  • Storage Drawer Below Helm Seat Pedestal
  • Molded Bridge Lounge Seating (Forward or Aft Facing) with Flip-down Armrest
  • Pursuit Cockpit JL Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, JL Speakers (7 Total, 4 in Hardtop, 2 in Bow, and Subwoofer), Amplifi er and Zonal Remote in Bow
  • Molded Entertainment Center with Sink, Cold Water Faucet, Trash Can, Drink Holders, Cutting Board and Hinged Fiberglass Lid and Door
  • 12v, 2.3 cubic ft Stainless Steel Drawer Refrigerator with 3M Protective Film
  • Molded Aft Facing Cockpit Seat with Insulated Storage Below and Armrest
  • Folding Transom Seat with Patented Adjusting Backrest
  • Folding Seat (Portside) Under Gunwale
  • Fiberglass Boarding Step (Starboard)
  • Custom Molded Cockpit Table with Dual Mounting Locations and Dedicated Storage
  • Cockpit Machinery Access Hatch
  • Bow Machinery Access Hatch
  • Forward Cockpit Table and Bow Sunpad Filler
  • Mid-ship Machinery Access Hatch
  • Fresh Water Wash with Chrome over Brass Pull-out Sprayer
  • Fresh and Raw Water Outlets in Cockpit with Quick Connect Fittings and 25’ Hose
  • LED Cockpit Accent Lights (5) with Waterproof Switch in Cockpit
  • LED Under Gunwale Mid-Level Accent Lighting (Blue)
  • Sunbrella Bow Tonneau Cover
  • Two (2) 316L Stainless Steel Drink Holders on Bridge Lounge, Two (2) Acrylic Drink Holders at Helm, Two (2) 316L Stainless Steel in Gunwale, One (1) Acrylic Drink Holder at Aft Facing Cockpit Seat

FISHING FEATURES

  • Rod Holders (4), Stainless Steel, in Gunwale
  • Lighted Oceana Blue 26 Gallon Recirculating Livewell
  • Vertical Rod Holders, (5) Stainless Steel. In Transom
  • Fish Boxes, Insulated, and Diaphragm Pumps with Overboard Discharge (Port and Starboard)
  • Cockpit Tackle Center with Plano Box Storage (3) Behind Aft Facing Seat Backrest

HELM

  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Footrest/Platform, and Safety Lanyard
  • 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
  • 12V Panel with Illuminated Carling® Rocker Switches
  • Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control
  • Compass
  • Trim Tab Control Panel and Indicator
  • Waterproof Stereo Remote with Full Function Display
  • Two (2) 12V Outlet and One 12V Dual USB Charger
  • Bow Thruster Joystick Control
  • Helm Drink Holders (2) in Side Panel
  • Helm Fire Extinguisher

ELECTRONICS

  • Garmin® Electronics Package: Dual GPSMAP 8612 [1 XSV], Airmar B175M 1KW CHIRP Transducer, NMEA 2000 Starter kit, Pursuit Custom Dash Panel, Yamaha Gateway with Cable, VHF Antenna and Pre-Rig for VHF Radio (VHF Radio currently not available)

CONSOLE (PORT SIDE)

  • Patented Single Motion Dual Action Console Access Door with Gasket and 316L Stainless Steel Locking Latch
  • Cabin Entry Step
  • Molded Console Hull Liner with Pattern Area and Drainage
  • Molded Console Deck Liner
  • Dedicated Storage for Rods (4), Bow Table, Safety Gear, and Hanging Locker
  • Padded Fishing Reel Protector for Rod Storage
  • Convertible Berthing Accommodations/Seating with Cushions
  • Opening Port Light with Screen
  • Two Switch Panel with Overhead LED Lights (3) LED Floor Accent Light (1)
  • Main Distribution Panel with Voltage Display
  • One 12V Dual USB Charger and Flush Mounted Charging Station
  • One 120V Outlet (1) with GFI Protection
  • Fire Extinguisher
  • CO Monitor

HEAD (STARBOARD SIDE)

  • Patented Single Motion Dual Action Console Access Door with Gasket and 316L Stainless Steel Locking Latch
  • Enclosed Head Compartment
  • Vacuum Flush Electric Marine Head with Elongated Porcelain Bowl, 10 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Through Hull Fitting with Seacock
  • Fiberglass Toilet Seat Cover
  • Switch Panel with Overhead LED Light (1) LED Floor Accent Light (1)
  • Wet Gear Hanging Feature
  • Molded Sink with Cold Water Faucet, Corian® Countertop and Vanity Mirror
  • Under Sink Storage Locker
  • Sump Box Drain with Automatic Discharge Pump
  • Toilet Tissue Holder
  • Towel Ring
  • One 120V Outlet with GFI Protection (1)
  • Cockpit Table Storage

HARDTOP & WINDSHIELD

  • Molded Fiberglass Hardtop with Integrated Visor
  • Powder Coated Aft Structural Hardtop Supports
  • Custom Windshield System with Tempered Glass and Articulating Center Vent
  • Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings and USA Flag
  • Four (4) Tri Color LED Lights
  • Indirect Lighting over Dash
  • Fore and Aft Facing LED Spreader Lights
  • 316L Stainless Steel Fore/Aft Underside Grab Rails
  • 60 mil Strataglass™ Side Curtains
  • Integrated Stereo Speakers (4)
  • Horn, Trumpet
  • External AM/FM Antenna with 316L Stainless Steel Ratcheting Base
  • Port and Starboard Ventilation Hatches with Screens
  • Fiberglass Hardtop with Dedicated Radar, Antenna and Outrigger Locations

ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
  • Single 120V 30 AMP 60 Cycle Dockside Power with 316L Stainless Steel Power Inlet
  • One 120V 30 AMP 50’ Dockside Power Cord
  • Two 120V Outlets (2) with GFI Protection
  • One (1) 40 Amp Battery Charger
  • Four Battery System: Port Engine (1), Starboard Engine (1), House (1), and Bow Thruster (1)
  • One Grounding Bus Bar
  • Electronics Fuse Block
  • Two 12V outlets (2) and Two USB Outlets (2)
  • One Flush Mounted Induction Charging Station

MECHANICAL SYSTEMS

  • Molded Interior White Gel Coat
  • Molded Hatch with Gasket and Stainless Steel Gas Spring
  • Molded Bilge Sump Area
  • One Low Profile 900 GPH Bilge Pump with Integrated Float Switch, One 1500 GPH with Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
  • Fresh Water Pump with Filter
  • Raw Water Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • Fish Box Diaphragm Pumps (2)
  • Livewell Cyclone Pump with Bronze Sea Strainer
  • Teleflex Hydraulic Power Steering Pump
  • Dedicated Storage for Removable Stern Anchor
  • Dedicated Storage for Side Boarding Door Ladder

FUEL SYSTEM

  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • EPA Compliant Lined 150 Gallon (Port and Starboard) Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves, Digital Level Indicators and Deck Fuel Fill Plates
  • Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEM

  • 30 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Pressure Sensing/Variable Speed Pump
  • Fresh Water Distribution Manifold with Dedicated Valves
  • Cockpit Shower





Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.




Hull Color - Flag Blue

Bootstripe Color - Red/Red

Helm Color - Carbon



BOAT w/ENGINES

Twin Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), Multifunction Display Interface Yamaha® Joystick Control with Full Maneuverability (Set Point™ and Autopilot)

COLOR SELECTIONS

Hull Color
Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue) Helm Color
Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray Upholstery Color
Sea Salt (Standard), White/Gray

MECHANICAL SYSTEMS

120V/60 Cycle 5.0 kW Fischer Panda® Diesel Generator with 16 Gallon Fuel Tank Air Conditioning Package: Cabin 6,000 BTU, Cockpit 12,000 BTU (Requires Drop Curtain, Works with Shore Power or Generator) 110V/60Hz Cockpit Grill with Drip Pan Spot Light (ACR RCL-100 LED) with Remote Control at Helm (Cannot be Ordered with FLIR Option) Underwater Lighting LED (3), Quattro Spectrum

COMFORT & CONVENIENCE

12V, 1.7 ft3 Cooler with Chill Plate (Under Aft Facing Seat) Bridgedeck Teak Table with Storage Ski Tow, Transom Mount, Removable Premium Stereo Upgrade: M6 Sport Speakers and Subwoofer, Custom Tuned 8 Channel DSP Amp, Sirius Receiver Includes 3 Months Subscription

WEATHER

Custom Retractable Sunshade with One Touch Operation Bow Mediterranean Style Sunshade, (Stowable) Sunbrella® Canvas Color: Black, Tweed, Cadet Gray or Navy Upgraded Standard Canvas - Stamoid® (White) Drop Curtain - Sunbrella®, Required with AC Package Drop Curtain - Stamoid® (white) Aft Curtain - Sunbrella® Aft Curtain - Stamoid® (White) Instrument Cover - Sunbrella® Engine Covers - Sunbrella® (2) Bow Tonneau Cover - Stamoid® (White)

SPORT FISHING

Hardtop Mounted Rod Holders (6) Outriggers with 18’ Premium Black Telescoping Poles and Rigging Kit Outriggers - Upgrade to 20' Carbon Fiber Poles (Need to Order Outriggers)

ELECTRONICS

Garmin® Radar GMR 24 xHD (Dome) Garmin® GC-14 Rear Facing Camera FLIR Night Vision with Image Stabilization (Cannot be Ordered with Spotlight Option) SiriusXM® Weather Receiver (Subscription Required)

INTERIOR FABRIC

Nautilus (Standard) Sea Glass

This website uses cookies to ensure you get the best experience on our website.

GOT IT!
